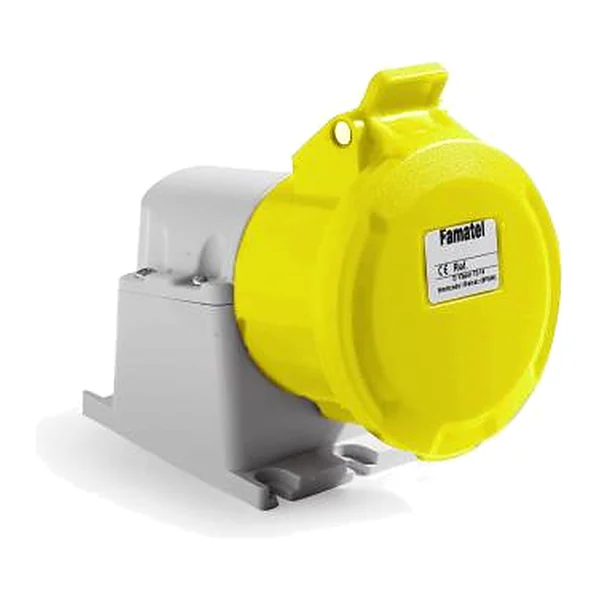

23197 — Industrial socket surface-mounted angled 90º ECO 16A 3P+T 110V IP44 - Angled 90º

23197 — Industrial socket surface-mounted angled 90º ECO 16A 3P+T 110V IP44 - Angled 90º

Manufacturer: Famatel · Code: 23197

€5.45 incl. VAT / pc€4.54 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO ECO wall outlet. 3P+E, 16 A, 110 V~ 50/60 Hz, protected contact with a 4-hour timer, yellow color. Protection rating IP44; terminals with screws; polyamide PA6 and ABS housing; brass contacts; rear cable entry; flexible conductor cross-section 1–2.5 mm²; weight 228 g. Impact resistance IK08.

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS IP44 | 16A / 32A – Angled 90º ECO SpeedPRO
Product typeWall-mounted socket
Number of poles4 (3P+E)
Voltage, V110
Current, A16
Degree of protectionIP44
Colouryellow
Min. qty5
Carton60
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
