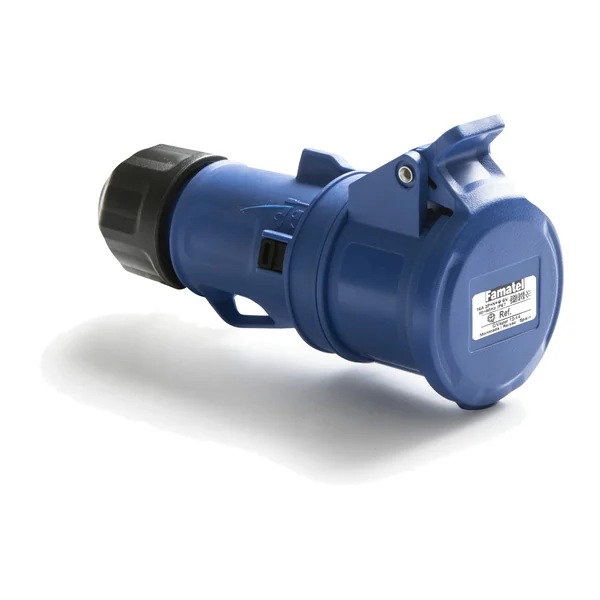

23200 — Industrial portable socket 2P+T 16A 230V IP44/54

23200 — Industrial portable socket 2P+T 16A 230V IP44/54

Manufacturer: Famatel · Code: 23200

€4.58 incl. VAT / pc€3.82 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO mobile socket. 2P+E, 16 A, 230 V~ 50/60 Hz, protected contact with a 6-hour timer, blue color. Protection rating IP44/IP54; screw terminals; polyamide PA6 body; brass contacts; double mounting system — quick threaded connection and integrated anti-loosening clip; terminals with aligned screws — for both solid and stranded conductors.

Technical data

SectionIndustrial plugs and sockets
GroupPORTABLE SOCKETS IP44/54 | 16A / 32A – SpeedPRO
Product typePortable socket
Number of poles3 (2P+E)
Voltage, V230
Current, A16
Sizeø85 × 157 mm
Degree of protectionIP44/IP54
Colourblue
Min. qty10
Carton120
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
