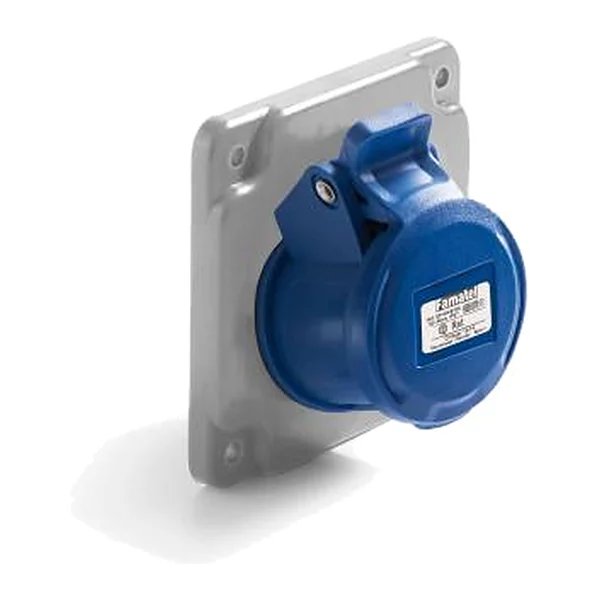

23271 — Industrial panel-mounted socket - Straight 3P+T 16A 230V IP44/54

23271 — Industrial panel-mounted socket - Straight 3P+T 16A 230V IP44/54

Manufacturer: Famatel · Code: 23271

€5.33 incl. VAT / pc€4.44 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO flush-mounted contact, straight. 3P+E, 16 A, 230 V~ 50/60 Hz, 9-hour protection, blue color. Protection rating IP44/IP54; screw terminals; polyamide PA6 and ABS housing; brass contacts; nut-free mounting; flexible conductor cross-section 1–2.5 mm²; flange 75 × 75 mm.

Technical data

SectionIndustrial plugs and sockets
GroupPANEL-MOUNTED SOCKETS IP44/54 | Straight 16A / 32A-SpeedPRO
Product typePanel-mounted socket
Number of poles4 (3P+E)
Voltage, V230
Current, A16
Size75 × 75 mm (flange)
Degree of protectionIP44/IP54
Colourblue
Min. qty10
Carton120
Net weight, kg0,152
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
