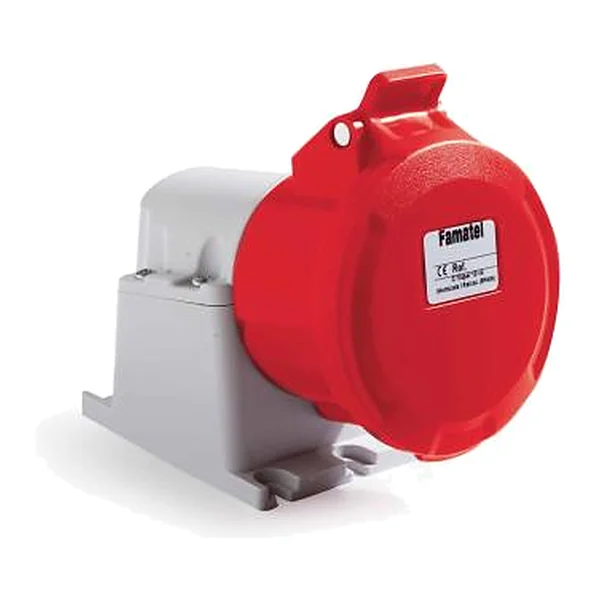

23395 — Industrial socket surface-mounted angled 90º ECO 3P+N+T 16A 400V IP44 - Angled 90º

23395 — Industrial socket surface-mounted angled 90º ECO 3P+N+T 16A 400V IP44 - Angled 90º

Manufacturer: Famatel · Code: 23395

€7.07 incl. VAT / pc€5.89 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall outlet, ECO. 3P+N+E, 16 A, 400 V~ 50/60 Hz, 6-hour protection, red color. Protection rating IP44; terminals with screw; body made of polyamide PA6 and ABS; brass contacts; rear cable entry; flexible conductor cross-section 1–2.5 mm²; weight 250 g. Impact resistance IK08.

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS IP44 | 16A / 32A – Angled 90º ECO SpeedPRO
Product typeWall-mounted socket
Number of poles5 (3P+N+E)
Voltage, V400
Current, A16
Degree of protectionIP44
Colourred
Min. qty3
Carton36
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
