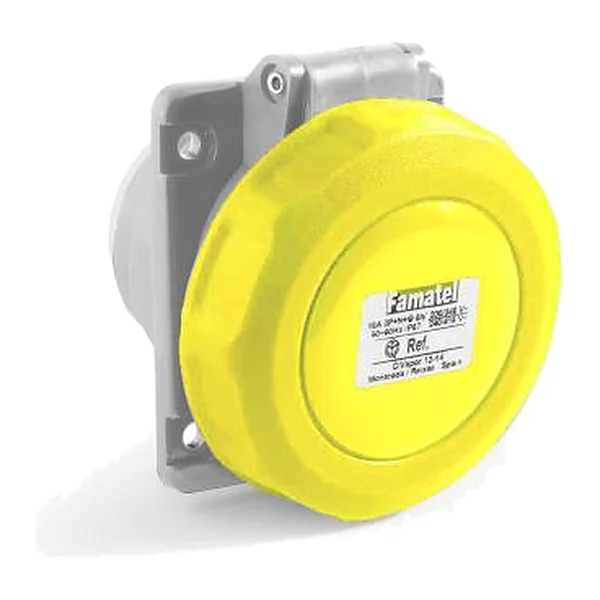

24135 — Industrial panel-mounted socket - angled 10° 3P+N+T 32A 110V IP66/67
Manufacturer: Famatel · Code: 24135
€4.87 incl. VAT / pc€4.06 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO flush-mount socket, angled 10°. 3P+N+E, 32 A, 110 V~ 50/60 Hz, protected contact with a 4-hour timer, yellow color. Protection class IP66/IP67; screw terminals; housing made of polyamide PA6 and ABS; brass contacts; nut-free mounting; flexible conductor cross-section 2.5–6 mm².
Technical data
| Section | Industrial plugs and sockets |
|---|---|
| Group | PANEL-MOUNTED SOCKETS IP66/67 | Angled 10º 16A / 32A – SpeedPRO |
| Product type | Panel-mounted socket |
| Number of poles | 5 (3P+N+E) |
| Voltage, V | 110 |
| Current, A | 32 |
| Size | 80 × 95 mm (flange) |
| Degree of protection | IP66/IP67 |
| Colour | yellow |
| Min. qty | 5 |
| Carton | 60 |
| Net weight, kg | 0,245 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
