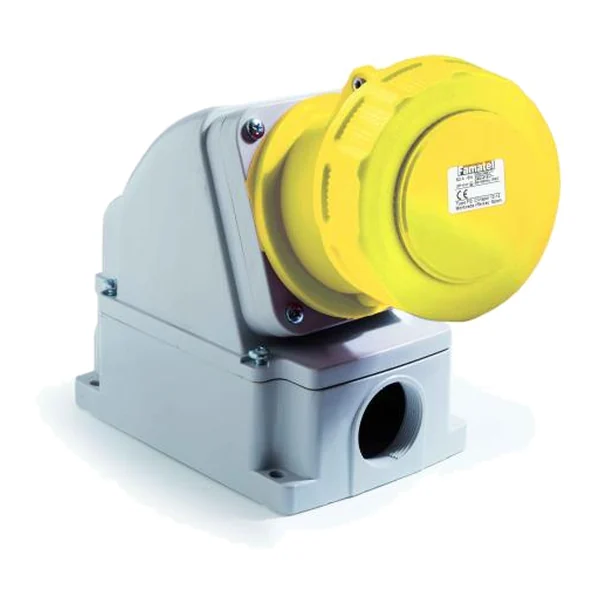

24194P — Industrial surface-mounted socket, angled 2P+T 63A 110V IP67 - with pilot

24194P — Industrial surface-mounted socket, angled 2P+T 63A 110V IP67 - with pilot

Manufacturer: Famatel · Code: 24194P

€35.29 incl. VAT / pc€29.41 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall outlet, angled 10°. 2P+E, 63 A, 110 V~ 50/60 Hz, protected contact with a 4-hour timer, yellow color, with pilot (auxiliary) contact. Protection rating IP67; terminals with internal hexagon screws; polyamide PA6 and ABS housing; brass contacts with pilot contact; cable entry from the top, 2 from the bottom, and from the back.

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS AND PLUGS IP67 | 63A – SpeedPRO
Product typeWall-mounted socket
Number of poles3 (2P+E)
Voltage, V110
Current, A63
Size220 × 118 × 190 mm
Degree of protectionIP67
Colouryellow
Min. qty1
Carton3
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
