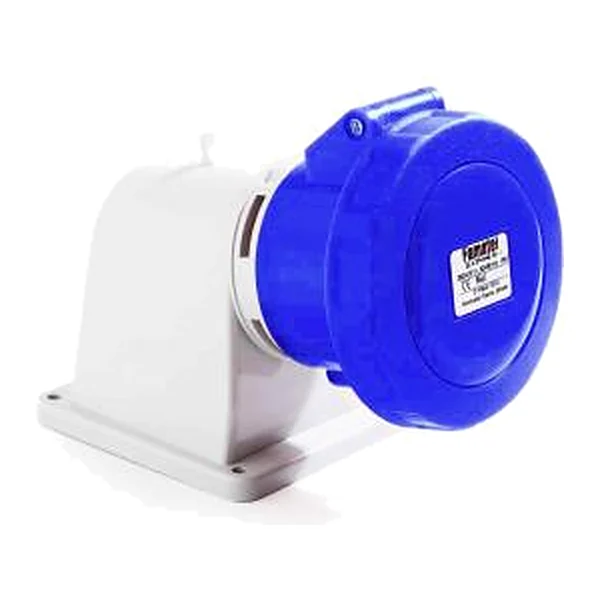

24255 — Industrial surface-mounted socket angled 3P+N+T 32A 230V IP67 - Angled 90º

24255 — Industrial surface-mounted socket angled 3P+N+T 32A 230V IP67 - Angled 90º

Manufacturer: Famatel · Code: 24255

€11.46 incl. VAT / pc€9.55 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall socket, angled 90°. 3P+N+E, 32 A, 230 V~ 50/60 Hz, with a 9-hour protective contact, blue color. Protection rating IP67; screw terminals; body made of polyamide PA6 and ABS; contacts made of brass; flexible conductor cross-section 2.5–6 mm²; dimensions 160 × 90 × 143 mm (H × W × D).

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS IP67 | 16A / 32A Angled 90º-SpeedPRO
Product typeWall-mounted socket
Number of poles5 (3P+N+E)
Voltage, V230
Current, A32
Size160 × 90 × 143 mm
Degree of protectionIP67
Colourblue
Min. qty2
Carton24
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
