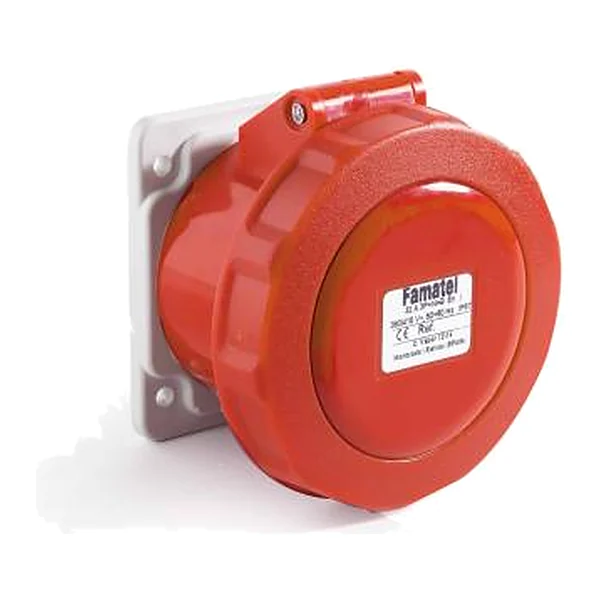

24379 — Industrial panel-mounted socket - Straight 2P+T 32A 400V IP66/67
Manufacturer: Famatel · Code: 24379
€6.05 incl. VAT / pc€5.04 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO flush-mount socket, straight. 2P+E, 32 A, 400 V~ 50/60 Hz, protected contact with 9-hour timer, red color. Protection rating IP66/IP67; screw terminals; housing made of polyamide PA6 and ABS; brass contacts; nut-free mounting; flexible conductor cross-section 2.5–6 mm²; flange 75 × 75 mm.
Technical data
| Section | Industrial plugs and sockets |
|---|---|
| Group | PANEL-MOUNTED SOCKETS IP66/67 | Straight 16A / 32A-SpeedPRO |
| Product type | Panel-mounted socket |
| Number of poles | 3 (2P+E) |
| Voltage, V | 400 |
| Current, A | 32 |
| Size | 75 × 75 mm (flange) |
| Degree of protection | IP66/IP67 |
| Colour | red |
| Min. qty | 5 |
| Carton | 60 |
| Net weight, kg | 0,227 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
