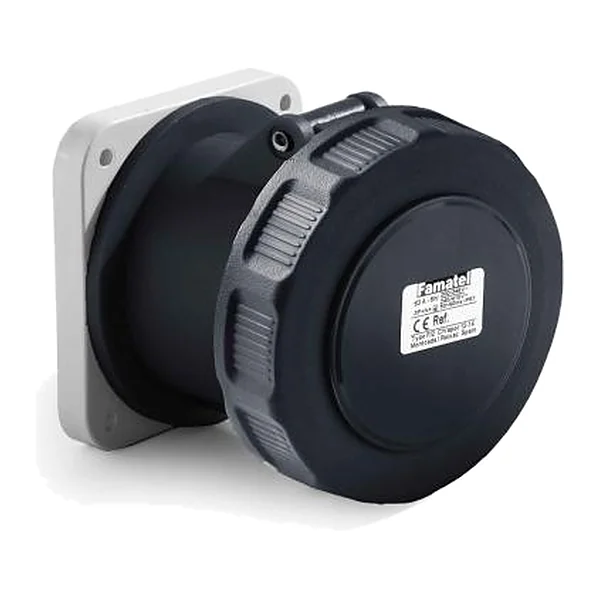

24482 — Industrial panel-mounted socket - straight 100X100 63A 3P+N+T IP66/67 500V

24482 — Industrial panel-mounted socket - straight 100X100 63A 3P+N+T IP66/67 500V

Manufacturer: Famatel · Code: 24482

€26.44 incl. VAT / pc€22.03 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO in-wall contact, straight. 3P+N+E, 63 A, 500 V~ 50/60 Hz, protected contact with a 7-hour timer, black color. Protection rating IP66/IP67; terminals with internal hexagonal screws; body made of polyamide PA6 and ABS; contacts made of brass; can be mounted in AcquaCOMBI enclosures with an adapter plate (ref. 3909).

Technical data

SectionIndustrial plugs and sockets
GroupPANEL-MOUNTED SOCKETS AND PLUGS IP66/67 | Straight 63A-SpeedPRO
Product typePanel-mounted socket
Number of poles5 (3P+N+E)
Voltage, V500
Current, A63
Size100 × 100 mm (flange)
Degree of protectionIP66/IP67
Colourblack
Min. qty1
Carton10
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
