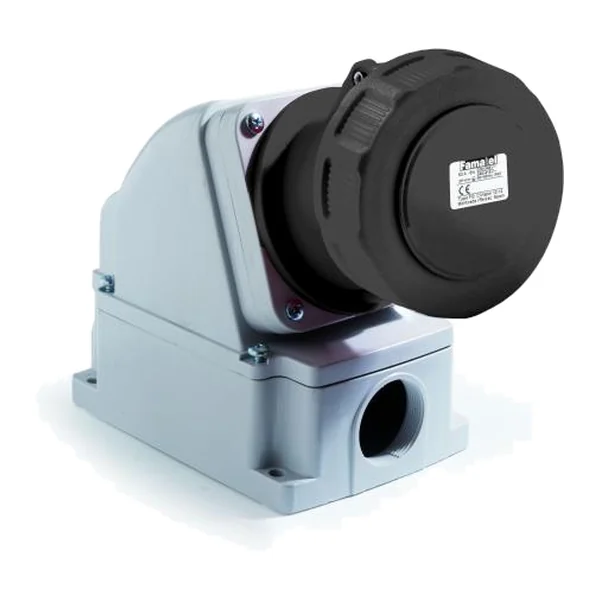

24497 — Industrial surface-mounted socket, inclined 3P+T+N 63A 500V IP67

24497 — Industrial surface-mounted socket, inclined 3P+T+N 63A 500V IP67

Manufacturer: Famatel · Code: 24497

€38.98 incl. VAT / pc€32.48 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO wall-mount socket, angled 10°. 3P+N+E, 63 A, 500 V~ 50/60 Hz, protected contact with a 7-hour timer, black color. Protection rating IP67; screw terminals with internal hexagon; housing made of polyamide PA6 and ABS; brass contacts, with pilot contact; cable entry from the top, 2 from below and from the back.

Technical data

SectionIndustrial plugs and sockets
GroupWALL-MOUNTED SOCKETS AND PLUGS IP67 | 63A – SpeedPRO
Product typeWall-mounted socket
Number of poles5 (3P+N+E)
Voltage, V500
Current, A63
Size220 × 118 × 190 mm
Degree of protectionIP67
Colourblack
Min. qty1
Carton3
Net weight, kg0,86
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
