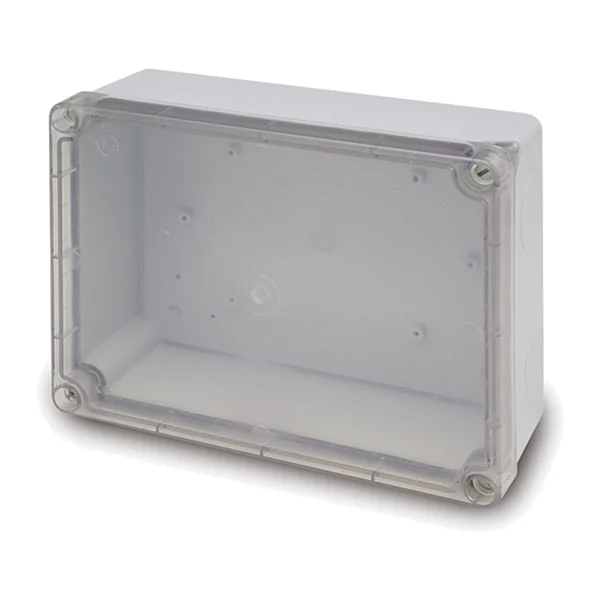

3044 — Moisture-proof box IP55 220×170×85, without glands - transparent cover
Manufacturer: Famatel · Code: 3044
€13.72 incl. VAT / pc€11.43 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
AcquaBOX junction box. Protection rating IP55, dimensions 182 × 235 × 95 mm (H × W × D), color: light gray base, transparent lid. Transparent lid made of polycarbonate (PC), base made of ABS; the lid remains attached to the box when opened (hinges); 1/4 turn screws; protection rating IP55, impact resistance IK07.
Technical data
| Section | Junction boxes |
|---|---|
| Group | WATERPROOF JUNCTION BOXES IP55/IP65 - AcquaBOX cable gland |
| Product type | Junction box |
| Size | 182 × 235 × 95 mm |
| Degree of protection | IP55 |
| Colour | light grey |
| Min. qty | 1 |
| Carton | 28 |
| Tariff code (CN/TARIC) | 3925 90 80 (3925908000) |
| Import duty from third countries | 6,5 % |
Documents
