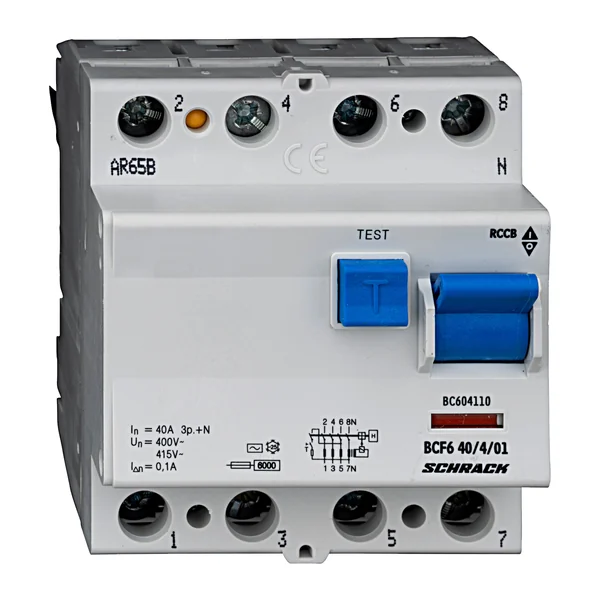

BC604110 — Residual current circuit breaker 40A, 4P, 100mA, type AC, 6kA
Manufacturer: Schrack · Code: BC604110
€60.23 incl. VAT / pc€50.19 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Residual current circuit breaker 40A, 4P, 100mA, type AC, 6kA.
- BC series
- Type AC (sensitive to AC residual current)
- Type: without time delay
- Product standard EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 50581:2012
Technical data
| Product type | Residual current circuit breaker |
|---|---|
| Series | BC |
| Rated current | 40 A |
| Poles | 4P |
| Breaking capacity | 6 kA |
| Rated residual current | 100 mA |
| RCD type | AC |
| EAN | 9004840451528 |
| Net weight, kg | 0,32 |
| Tariff code (CN/TARIC) | 8536 20 10 |
