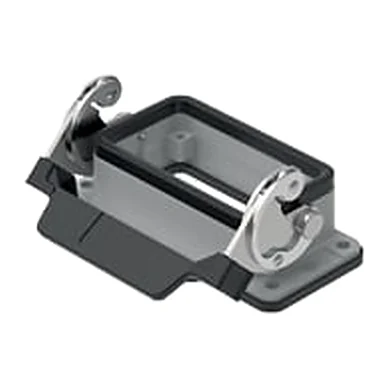

CHI 10 L — Base for panel cut-out C-TYPE, size 57.27, with one clip
Manufacturer: ILME · Code: CHI 10 L
€27.88 incl. VAT / pc€23.23 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
C-TYPE series. Protection class: IP65/IP66/IP69. Operating temperature: -40…+125 °C. Material: bracket: stainless steel and polyamide (PA); seal: NBR.
Technical data
| Series | C-TYPE |
|---|---|
| Weight, g | 115 |
| Packaging, pcs | 20 |
| Product type | Base |
| Size | 57.27 |
| Number of clamps | 1 |
| Mounting | in the panel cut-out |
| Description in the ILME price list | BLK HOUSING 57.27 L G |
| Packaging: weight, kg | 2,6 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
