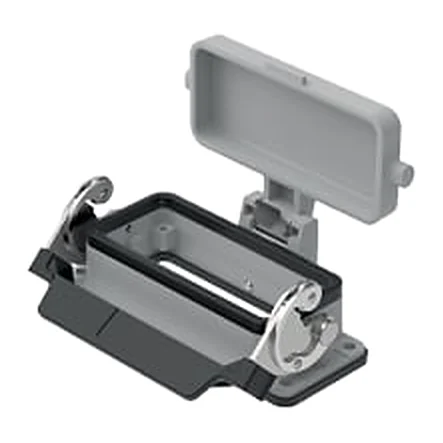

CHI 16 LS — Base for enclosure opening C-TYPE, size 77.27, with one clip, with metal cover
Manufacturer: ILME · Code: CHI 16 LS
€36.41 incl. VAT / pc€30.35 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
C-TYPE series. Protection rating: IP65. Operating temperature: -40…+125 °C. Material: clamp: stainless steel and polyamide (PA); seal: NBR.
Technical data
| Series | C-TYPE |
|---|---|
| Weight, g | 190,078 |
| Packaging, pcs | 20 |
| Product type | Base |
| Size | 77.27 |
| Number of clamps | 1 |
| Mounting | in the panel cut-out |
| Description in the ILME price list | BLK HOUSING 77.27 L G COV |
| Packaging: weight, kg | 4,38 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
