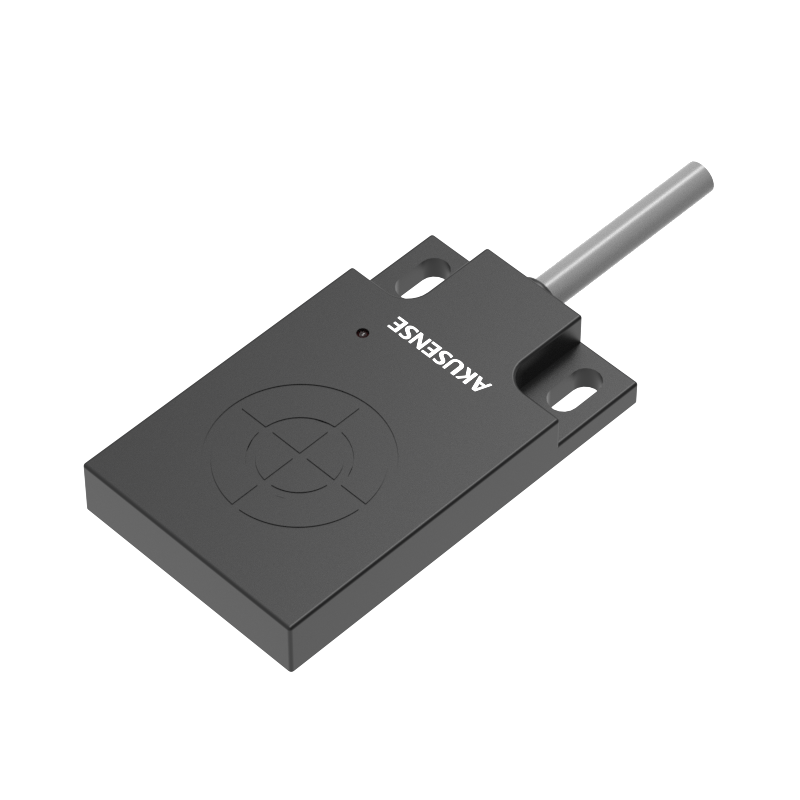

CQ07-05NO — Capacitive sensor, flat, flush, 5 mm, NPN NO, cable 2 m, 3 cores
Manufacturer: Akusense · Code: CQ07-05NO
€84.65 incl. VAT / pc€70.54 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Capacitive sensors |
|---|---|
| Series | CQ |
| Version | flat |
| Operating principle | Capacitive |
| Housing shape | Flat |
| Mounting | Flush |
| Measuring range, mm | 5 |
| Range | Sn = 5 mm |
| Assured operating distance, mm | 4 |
| Output | NPN |
| Output function | NO |
| Power supply | 10–30 V DC ±10 % |
| Load, mA | 200 |
| Frequency, Hz | 100 |
| Connection | Cable 2 m, 3 cores |
| Connection type | Cable |
| Degree of protection | IP65 |
| Housing material | PBT |
| Sensing face material | PBT |
| Adjustment | Multi-turn potentiometer |
| Indication | Yellow LED |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −25 … +70 °C |
| Min. temperature, °C | -25 |
| Max. temperature, °C | 70 |
| Dimensions | 50,6 × 30,3 × 7 mm |
| Weight, g | 58 |
| Repeatability | ≤ 5 % |
| Hysteresis | ≤ 15 % |
| Smallest detectable object | steel Fe 37 (St37) |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
