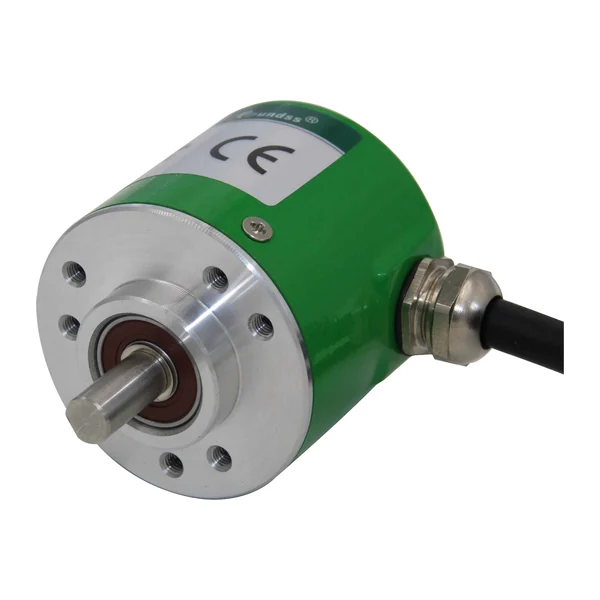

DCC38S8-J3M2E-3600BM RD4-8*8 — Incremental encoder, Ø38 mm, solid shaft 8 mm, 3600 ppr, Voltage
Manufacturer: ROUNDSS · Code: DCC38S8-J3M2E-3600BM RD4-8*8
€210.40 incl. VAT / pc€175.33 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Encoder OD 38 mm; 8 mm solid shaft; side cable outlet 3 m waterproof; DC8-26V; output voltage; 3600 pulses; with metal connector.
Technical data
| Product type | Incremental encoder |
|---|---|
| Housing size | Ø38 mm |
| Shaft | Solid shaft |
| Shaft size | Ø8 mm |
| Pulses per revolution | 3600 |
| Signal type | Voltage |
| Power supply | 8–26 V DC |
| Cable length | 3 m |
| Cable version | waterproof, side cable exit |
| Included | coupling RD4-8*8 |
| Net weight, kg | 0,135 |
| Tariff code (CN/TARIC) | 9031 49 90 (9031499000) |
| Import duty from third countries | 0 % |
