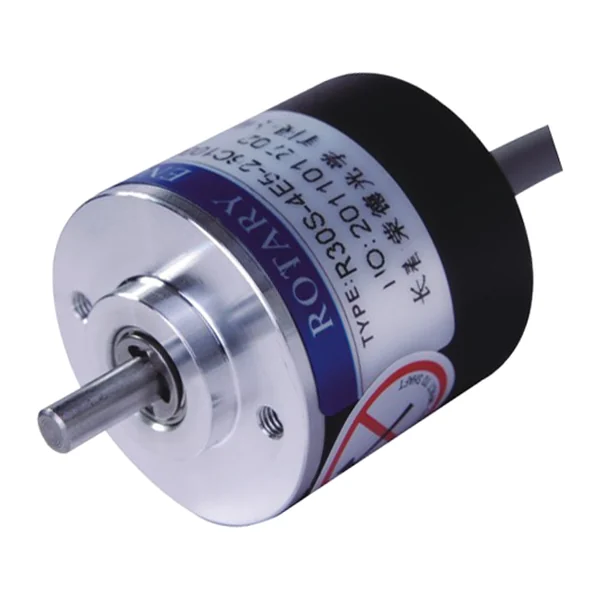

RCC30S4-E2M1C-500BM — Incremental encoder, Ø30 mm, solid shaft 4 mm, 500 ppr, Open collector
Manufacturer: ROUNDSS · Code: RCC30S4-E2M1C-500BM
€85.34 incl. VAT / pc€71.12 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Encoder with OD 30 mm; 4 mm solid shaft; side cable outlet 2 m; 5V; Open collector; 500 pulses.
Technical data
| Product type | Incremental encoder |
|---|---|
| Housing size | Ø30 mm |
| Shaft | Solid shaft |
| Shaft size | Ø4 mm |
| Pulses per revolution | 500 |
| Signal type | Open collector |
| Power supply | 5 V DC |
| Cable length | 2 m |
| Cable version | side cable exit |
| Net weight, kg | 0,09 |
| Tariff code (CN/TARIC) | 9031 49 90 (9031499000) |
| Import duty from third countries | 0 % |
