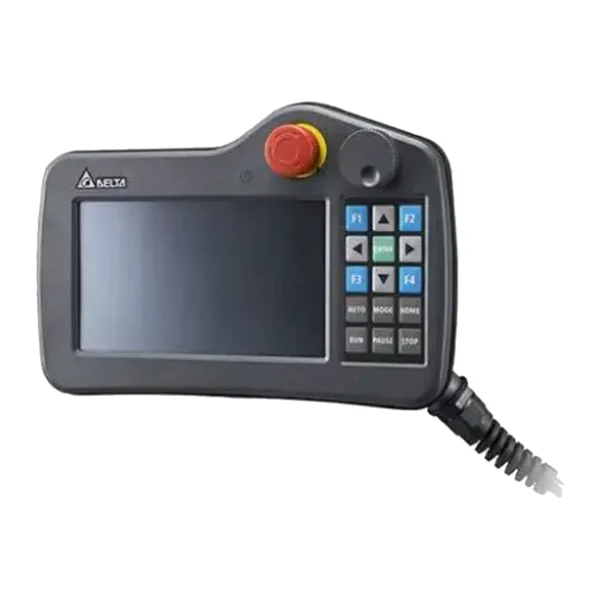

DOP-107HE425 — Operator panel DOP-107HE425, 7″

DOP-107HE425 — Operator panel DOP-107HE425, 7″

Manufacturer: Delta Electronics · Code: DOP-107HE425

€1,442.18 incl. VAT / pc€1,201.82 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

DOP-107HE425, 7" – Handheld HMI (Ethernet), teaching pendant for robots/motion; e-stop, 5 m flying leads

Technical data

SeriesDOP-100
Product typeHandheld panel
Screen size7″
Display typeTFT LCD, 16-bit colour
Resolution800 x 480
Flash memory256 MB
RAM256 MB
Serial ports, qty0
Ethernet1 port, 10/100 Mbps
USB1 × USB client
Card slotSD/SDHC
Wireless connectivitynone
CommunicationModbus TCP, MQTT, OPC UA client, FTP, VNC, Web API, e-mail; connection to PLCs via Ethernet
Other interfacesemergency stop: 2 × B contact (NC); 3-position enabling switch: 1 × A contact; no MPG; 15 function keys; cable 5 m
Net weight, kg0,75
Tariff code (CN/TARIC)8537 10 91 (8537109199)
Import duty from third countries2,1 %
