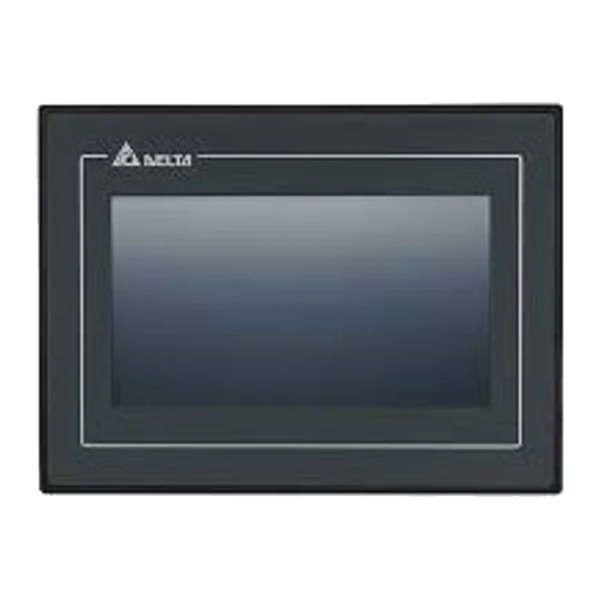

DOP-110IG — Operator panel DOP-110IG, 10.4″

DOP-110IG — Operator panel DOP-110IG, 10.4″

Manufacturer: Delta Electronics · Code: DOP-110IG

€1,071.90 incl. VAT / pc€893.25 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

DOP-110IG, 10.4" – Standard Ethernet type (3 COM), 4:3 squared

Technical data

SeriesDOP-100
Product typeTouch panel
Screen size10,4″
Display typeTFT LCD, 16-bit colour
Resolution800 x 600
Flash memory256 MB
RAM256 MB
Serial ports, qty3
Serial portsCOM1 RS-232, COM2 RS-232/RS-485, COM3 RS-232/RS-422/RS-485
Ethernet1 port, 10/100 Mbps
USB1 × USB host, 1 × USB client
Card slotSD
CommunicationModbus TCP, MQTT, OPC UA client, FTP, VNC, Web API, e-mail; connection to PLCs via COM and Ethernet
Other interfacesaudio output (AUX, stereo)
Net weight, kg1,6
Product dimensions, mm299 × 224 × 46,8
Tariff code (CN/TARIC)8537 10 91 (8537109199)
Import duty from third countries2,1 %
