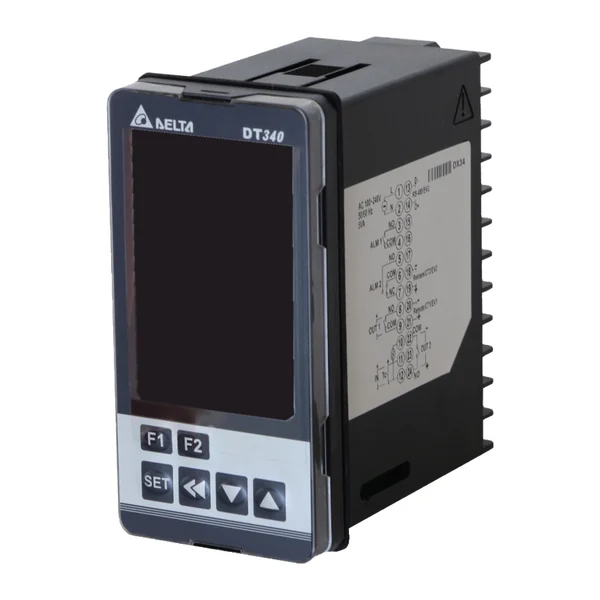

DT340CA — Intelligent temperature controller Delta DT3 series, 48 × 96 mm (1/8 DIN)
Manufacturer: Delta Electronics · Code: DT340CA
€111.70 incl. VAT / pc€93.08 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta series DT3 intelligent temperature controller, 48 × 96 mm (1/8 DIN), output 1: constant current, 4 ~ 20 mA, 2 alarm relay outputs (250 VAC, 3 A), power supply 100 ~ 240 VAC, 50 / 60 Hz. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120; 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, 0~50 mV. Control: PID, programmable PID (ramp/soak), fuzzy logic, auto-tuning, ON/OFF, manual; measurement period 0.1 s; tri-color LCD display; user buttons F1 / F2. Modular: optional cards for output 2, event, CT, remote setpoint and retransmission.
Technical data
| Series | DT3 |
|---|---|
| Size | 48 × 96 mm (1/8 DIN) |
| Output 1 | Current, 4 ~ 20 mA |
| Output 2 | None (optional card DT3-R / V / C / L) |
| Communication | None (option: DT3-40ECOM expansion module) |
| Power supply | 100 ~ 240 VAC, 50 / 60 Hz |
| Number of alarm outputs | 2 |
| Tariff code (CN/TARIC) | 9032 10 20 (9032102090) |
| Import duty from third countries | 2,8 % |
