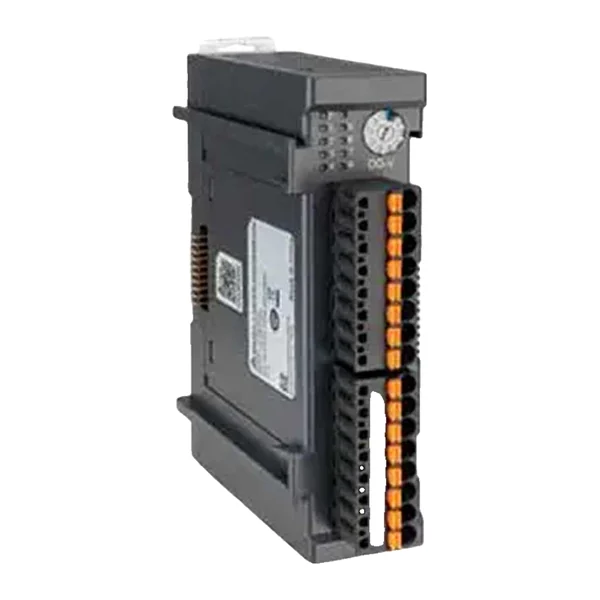

DTM-DOX — Delta DTM I/O module, 16 open-drain outputs (2 groups H / L × 8)
Manufacturer: Delta Electronics · Code: DTM-DOX
€226.09 incl. VAT / pc€188.41 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Delta DTM input/output module, 16 open-drain outputs (2 groups H / L × 8), max. 24 VDC / 30 mA per output, for SSR control; short-circuit current limit 50 mA. Up to 15 DTM-DOX modules per DTM group (when only DOX modules are used).
Technical data
| Series | DTM |
|---|---|
| Size | 30 × 114 × 81 mm |
| Output 1 | 16 × open drain, 24 VDC / 30 mA (SSR control) |
| Communication | Internal bus to the DTM main module |
| Power supply | 24 VDC |
| Tariff code (CN/TARIC) | 9032 90 00 (9032900090) |
| Import duty from third countries | 2,8 % |
