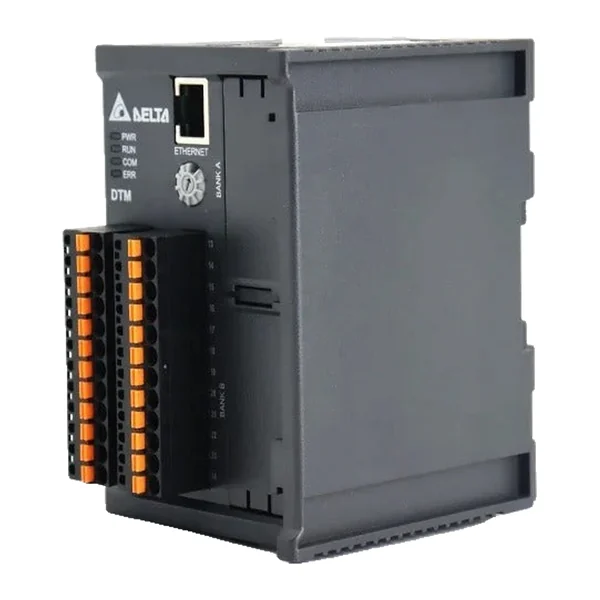

DTME08 — Main module (CPU) of the multi-channel modular temperature controller Delta DTM, 8 input channels
Manufacturer: Delta Electronics · Code: DTME08
€689.45 incl. VAT / pc€574.54 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Main module (CPU) for the multi-channel modular temperature controller Delta DTM. 8 input channels, RS-485 (Modbus RTU / ASCII) + Ethernet (Modbus TCP, EtherNet/IP) + mini USB. Supports up to 7 measurement modules + 8 input/output modules. Outputs are via the DTM-BD□ output module. Inputs: thermocouples K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100, Ni120, Cu50; 0~10 V, 0~5 V, 0~50 mV, 0~20 mA, 4~20 mA; PID, programmable PID, ON/OFF, manual. Measurement period: 0.1 s for all 8 inputs. DIN rail mounting.
Technical data
| Series | DTM |
|---|---|
| Size | 71 × 114 × 81 mm |
| Output 1 | Via DTM-BD□ output cassette (4 channels) |
| Communication | RS-485 (Modbus RTU / ASCII) + Ethernet (Modbus TCP, EtherNet/IP) + mini USB |
| Power supply | 24 VDC (6 W) |
| Number of alarm outputs | Via the output modules (13 alarm modes) |
| Tariff code (CN/TARIC) | 9032 10 20 (9032102090) |
| Import duty from third countries | 2,8 % |
