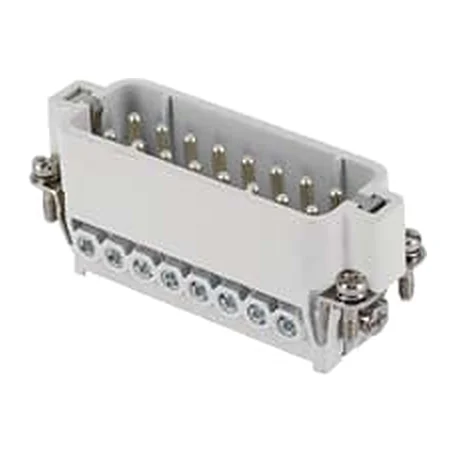

JDAM 16 — Connector insert, male insert (male contacts), 16 poles + PE, size 66.16, screw terminals, tin-plated contacts, 16 A / 250 V
Manufacturer: ILME · Code: JDAM 16
€15.73 incl. VAT / pc€13.11 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
JDA series. Connection: screw terminals. Without pressure plate – for wires with ferrules. Wire cross-section: 0.25–2.5 mm² (AWG 24–14). Contacts: turned, tin-plated. Data according to EN 61984: 16 A 250 V 4 kV 3; 16 A 230/400 V 4 kV 2. Voltage according to UL/CSA: 600V. Protection class: IP20 without housing, IP65/IP66 with housing. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connections: ≥ 200.
Technical data
| Series | JDA |
|---|---|
| Weight, g | 58 |
| Packaging, pcs | 30 |
| Product type | Insert |
| Gender | male |
| Number of poles | 16 + PE |
| Current, A | 16 |
| Voltage, V | 250 |
| Connection method | screw |
| Size | 66.16 |
| Description in the ILME price list | MALE INSERT 16P 16A JEI |
| Packaging: weight, kg | 1,99 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
