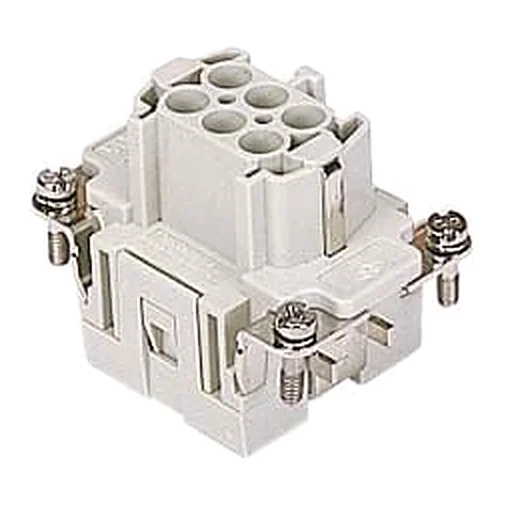

JSEF 06 — Connector insert, female insert (female contacts), 6 poles + PE, size 44.27, spring terminals, tin-plated contacts, 16 A / 500 V
Manufacturer: ILME · Code: JSEF 06
€21.72 incl. VAT / pc€18.10 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
JSE series. Connection: spring terminals. Conductor cross-section: 0.14–2.5 mm² (AWG 26–14). Contacts: turned, tin-plated. Data according to EN 61984: 16 A 500 V 6 kV 3; 16 A 400/690 V 6 kV 2. Voltage according to UL/CSA: 600V. Protection rating: IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connections: ≥ 200.
Technical data
| Series | JSE |
|---|---|
| Weight, g | 49 |
| Packaging, pcs | 100 |
| Product type | Insert |
| Gender | female |
| Number of poles | 6 + PE |
| Current, A | 16 |
| Voltage, V | 500 |
| Connection method | spring |
| Size | 44.27 |
| Description in the ILME price list | SPRING F INSERT 6P16A JEI |
| Packaging: weight, kg | 5,38 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
