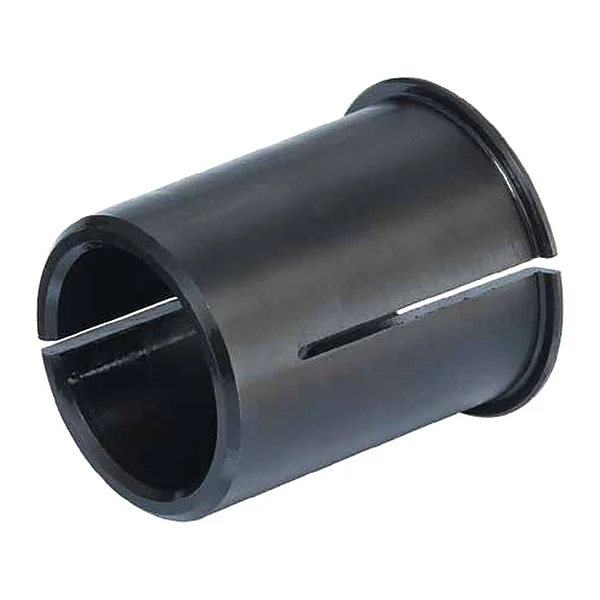

KBR24/22 — Reducing bushing Li Ming for input bore Ø24 mm and motor shaft Ø22 mm (SERVOBOX planetary gearboxes)
Manufacturer: Li Ming · Code: KBR24/22
Price on request
In stock
Description
Li Ming reducing sleeve for input opening Ø24 mm and motor shaft Ø22 mm (SERVOBOX planetary gearboxes).
- The ferrule is placed in the input opening of the gearbox when the servo motor shaft is thinner than the opening; thus, the clamping collar grips the shaft without any play.
- The combination of bore Ø24 mm → shaft Ø22 mm is listed in Li Ming's table for standard bushings.
- If the shaft diameter is not in the table, Li Ming supplies the reducer with a suitable bushing or with a larger bore plus a bushing.
- The bushing is longitudinally slit and has a 1 mm flange on the outer diameter.
- During installation, the bushing is inserted into the inlet opening before the motor; first, the flange bolts are tightened, then the locking ring.
Technical data
| Product type | Reducing bushing (軸套, Bushing) for the gearbox input — slotted, with 1 mm collar |
|---|---|
| Series | SERVOBOX |
| Input shaft / bore, mm | outer Ø24 (gearbox bore) / inner Ø22 (motor shaft) |
| Tariff code (CN/TARIC) | 8483 90 89 (8483908990) |
| Import duty from third countries | 2,7 % |
