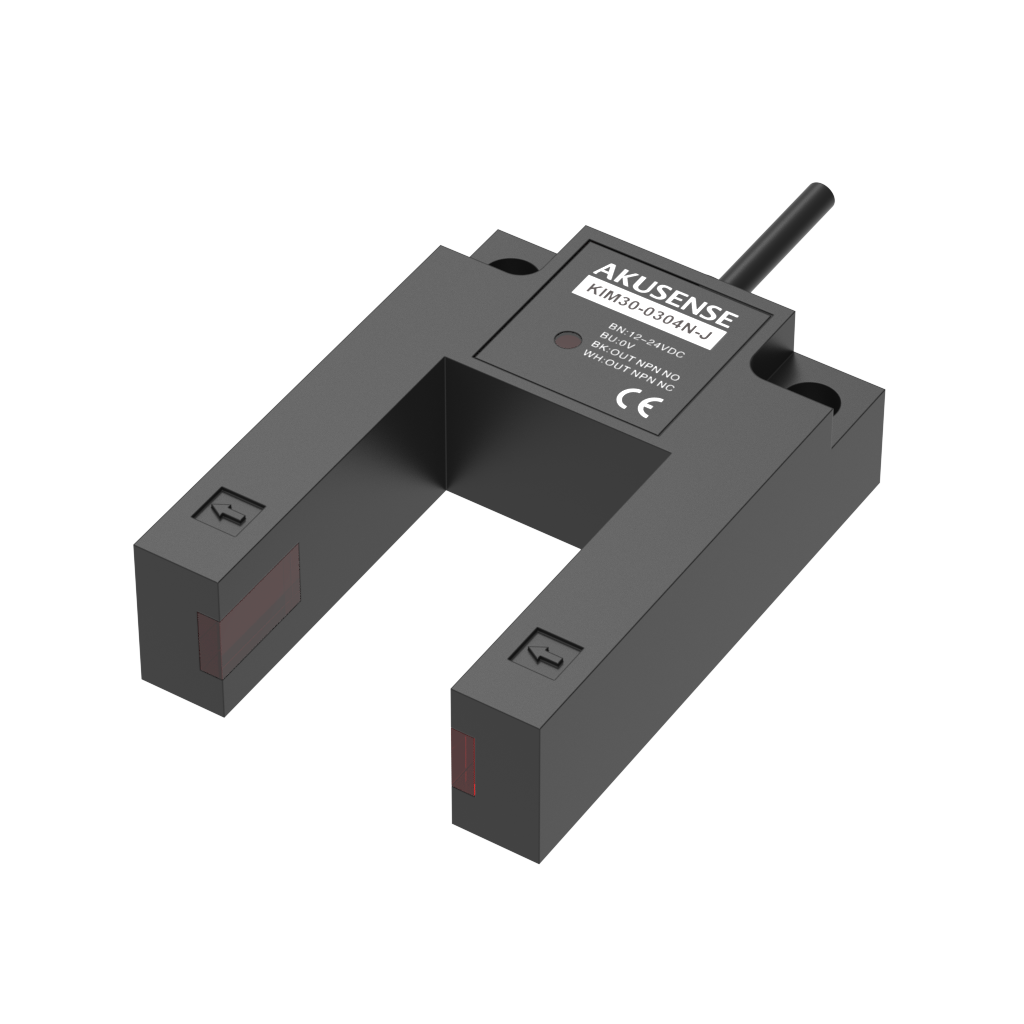

KIM30-0304N-J — Fork sensor, infrared, slot 30 mm, NPN, cable 2 m, 4 cores
Manufacturer: Akusense · Code: KIM30-0304N-J
€67.97 incl. VAT / pc€56.64 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Fork sensors |
|---|---|
| Series | KIM30 |
| Version | wide fork, 30 mm |
| Operating principle | Photoelectric |
| Detection method | Through-beam |
| Housing shape | U-shaped |
| Output | NPN |
| Output function | Light-on/dark-on, selectable |
| Power supply | 12–24 V DC ±10 % |
| Load, mA | 100 |
| Frequency, Hz | 2000 |
| Response time | 1 ms |
| Connection | Cable 2 m, 4 cores |
| Connection type | Cable |
| Degree of protection | IP60 |
| Housing material | ABS |
| Light source | Infrared LED 940 nm |
| Indication | Output — yellow |
| Protections | reverse polarity, short circuit |
| Operating temperature | −15 … +55 °C |
| Min. temperature, °C | -15 |
| Max. temperature, °C | 55 |
| Dimensions | 52 × 20,2 × 72 mm |
| Weight, g | 65 |
| Repeatability | < 0,03 mm |
| Hysteresis | < 0,03 mm |
| Slot width, mm | 30 |
| Slot depth, mm | 44 |
| Smallest detectable object | ø2 mm |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
