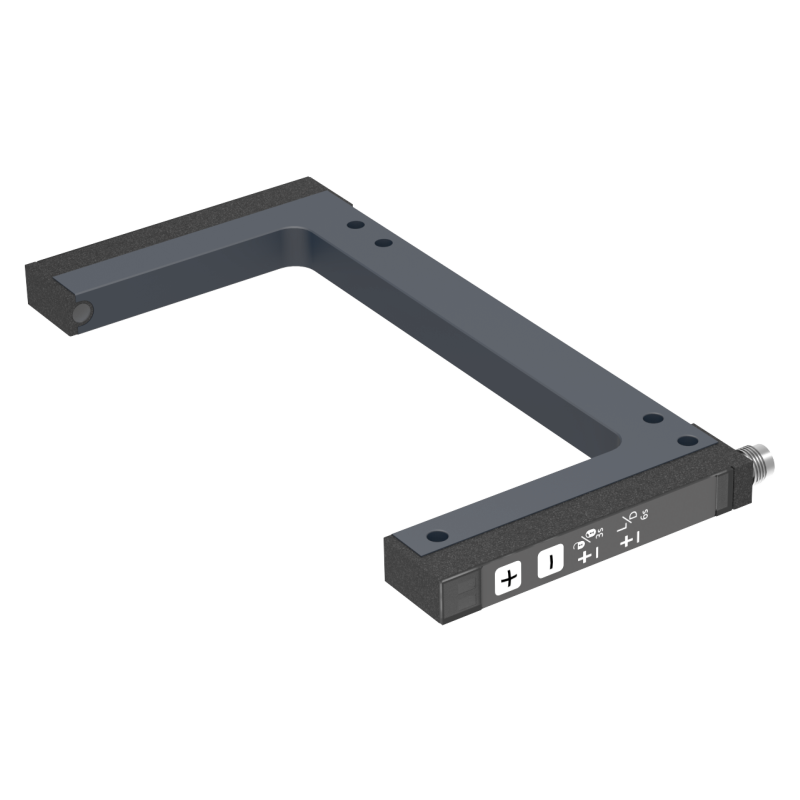

KLM06-0806NP — Fork sensor, laser, slot 80 mm, NPN/PNP, switchable, M8 connector, 4 pins

KLM06-0806NP — Fork sensor, laser, slot 80 mm, NPN/PNP, switchable, M8 connector, 4 pins

Manufacturer: Akusense · Code: KLM06-0806NP

€849.24 incl. VAT / pc€707.70 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Technical data

CategoryFork sensors
SeriesKLM06
Versionwide fork, laser
Operating principlePhotoelectric
Detection methodThrough-beam
Housing shapeU-shaped
OutputNPN/PNP, selectable
Output functionLight-on/dark-on, selectable
Power supply12–24 V DC ±10 %
Load, mA100
Frequency, Hz10000
Response time0,05 ms
ConnectionM8 connector, 4-pin
Connection typeM8 connector
Degree of protectionIP65
Housing materialAluminium + glass
Light sourceRed laser 670 nm
IndicationOutput — yellow
Protectionsreverse polarity, short circuit
Operating temperature−20 … +50 °C
Min. temperature, °C-20
Max. temperature, °C50
Dimensions74 × 10 × 118,5 mm
Weight, g96
Repeatability< 0,2 mm
Hysteresis< 0,2 mm
Slot width, mm80
Slot depth, mm59
Smallest detectable objectø0,05 mm
Tariff code (CN/TARIC)8536 50 19 (8536501900)
Import duty from third countries0 %
