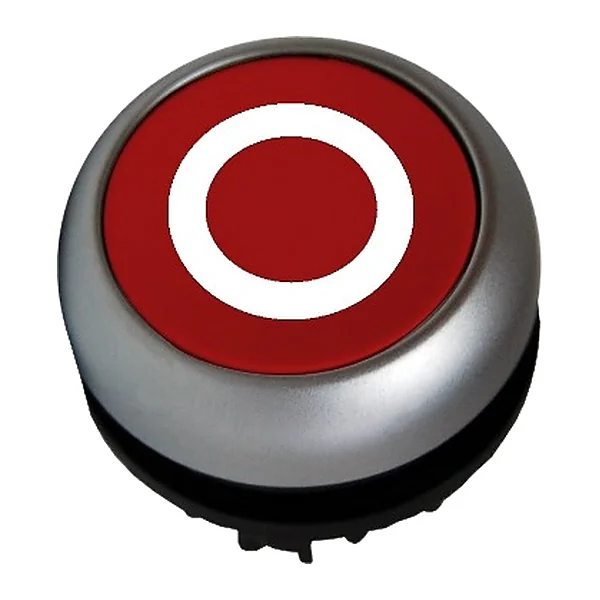

M22FP-MHR (O) — Flush illuminated M22 pushbutton (head without contacts) — red, with symbol "O", momentary (spring return)
Code: M22FP-MHR (O)
€5.72 incl. VAT / pc€4.77 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
M22FP-MHR (O) — M22 illuminated push button head, non-latching, red lens, with "O" symbol; supplied without base, contact blocks, or LED elements. Mounting in a Ø22.3 mm hole, panel thickness 1–4.5 mm. Face diameter: 30 mm. IP65 rating (front). Operating temperature: −25…+70 °C. Up to 5,000,000 cycles at up to 3,600 cycles/hour. Illuminated by an M22-SF-E30… LED (12–30 V DC, 5–14 mA) or M22-SF-E230… LED (85–264 V AC, 5–15 mA) in the color of the lens. Supplied with mounting base M22-A3 and 1 or 2 contact blocks M22-SF-NO / M22-SF-NC (in two layers – up to 4).
Technical data
| Colour | red |
|---|---|
| Illumination | for illumination (LED sold separately) |
| Actuator type | flush push button |
| Version | flush, momentary, with symbol “O” |
| Composition | illuminated push-button head |
| Degree of protection | IP65 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
