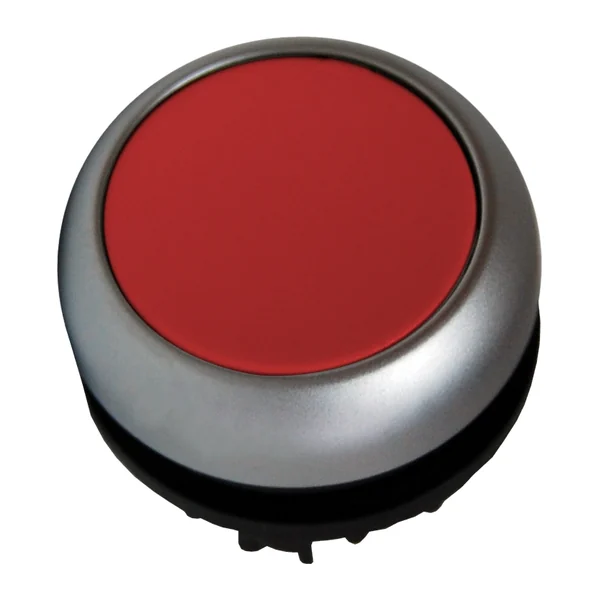

M22FP-MHRO — Flush M22 pushbutton (head without contacts) — red, momentary (spring return), non-illuminated
Code: M22FP-MHRO
€4.08 incl. VAT / pc€3.40 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
M22FP-MHRO — flat push button head M22, non-latching, red, opaque (non-illuminated); supplied without base and contact elements · mounting in a hole Ø22.3 mm, panel 1–4.5 mm · face Ø30 mm · IP65 on the front · −25…+70 °C · up to 5,000,000 cycles at up to 3,600 cycles/h · supplied with mounting base M22-A3 and 1 or 2 contact elements M22-SF-NO / M22-SF-NC (in two layers — up to 4).
Technical data
| Colour | red |
|---|---|
| Illumination | no |
| Actuator type | flush push button |
| Version | flush, momentary |
| Composition | push-button head |
| Degree of protection | IP65 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
