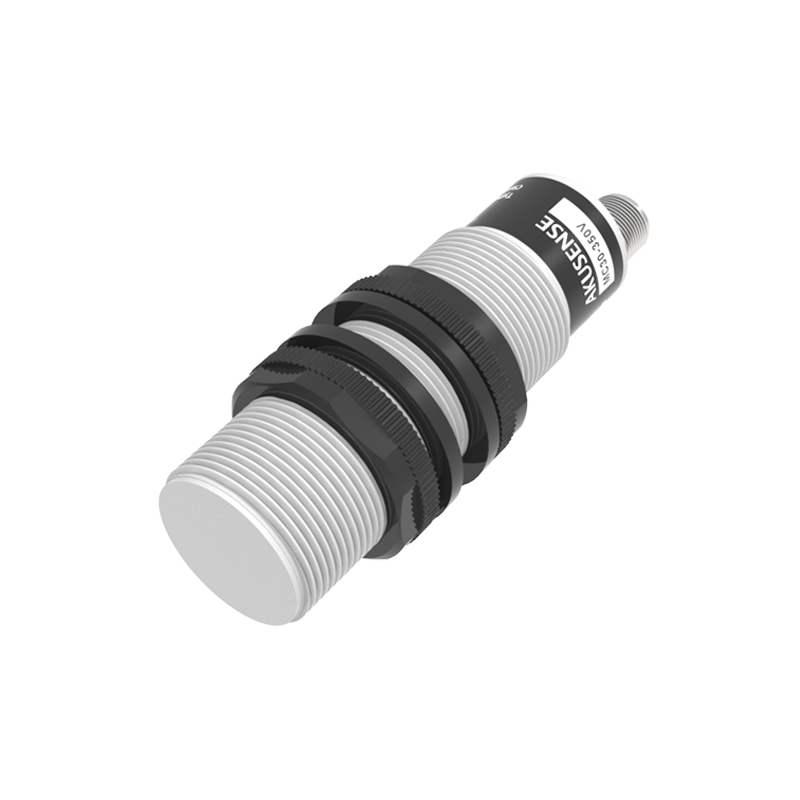

MC30-350N — Ultrasonic sensor M30, 0.25 – 3.5 m, NPN, connector M12, 4 pins
Manufacturer: Akusense · Code: MC30-350N
€618.85 incl. VAT / pc€515.71 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Ultrasonic sensors |
|---|---|
| Series | MC30 |
| Version | cylindrical M30 |
| Operating principle | Ultrasonic |
| Detection method | Diffuse |
| Size | M30 |
| Measuring range, mm | 3500 |
| Range | 0,25 – 3,5 m |
| Output | NPN |
| Power supply | 15–30 V DC ±5 % |
| Frequency, Hz | 2 |
| Response time | 250 ms |
| Connection | M12 connector, 4-pin |
| Connection type | M12 connector |
| Degree of protection | IP67 |
| Housing material | PBT |
| Adjustment | External teach-in |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −20 … +70 °C |
| Min. temperature, °C | -20 |
| Max. temperature, °C | 70 |
| Dimensions | M30 × 103 mm |
| Weight, g | 14 |
| Repeatability | 1 % |
| Included | Nuts |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
