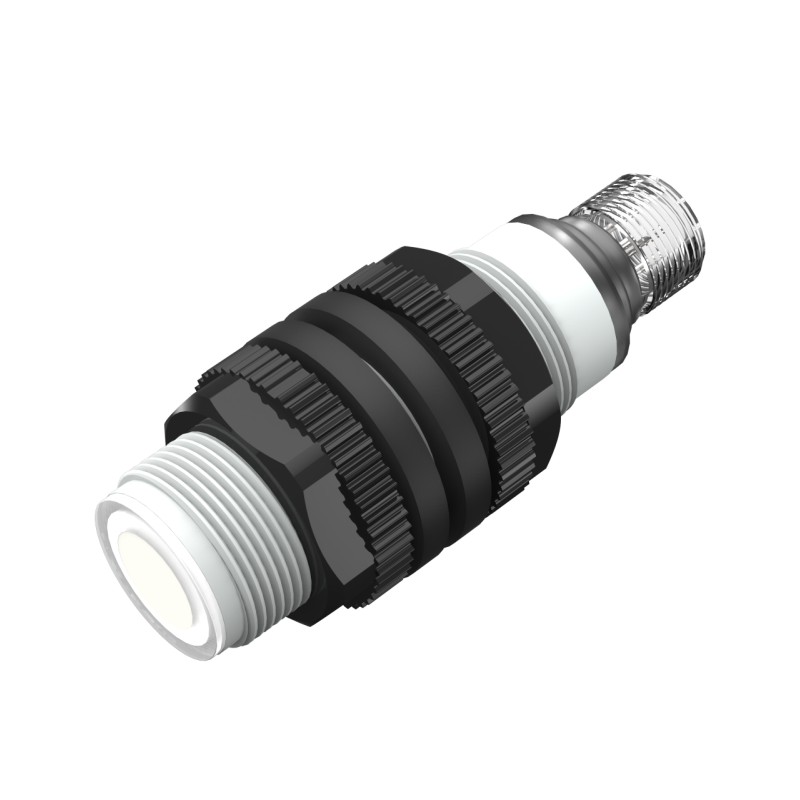

MS18-30N — Ultrasonic sensor M18, 40 – 300 mm, NPN, connector M12, 4 pins
Manufacturer: Akusense · Code: MS18-30N
€300.86 incl. VAT / pc€250.72 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Ultrasonic sensors |
|---|---|
| Series | MS18 |
| Version | cylindrical M18, short |
| Operating principle | Ultrasonic |
| Detection method | Diffuse |
| Size | M18 |
| Measuring range, mm | 300 |
| Range | 40 – 300 mm |
| Output | NPN |
| Power supply | 15–30 V DC ±5 % |
| Load, mA | 100 |
| Frequency, Hz | 8 |
| Response time | 12 ms |
| Connection | M12 connector, 4-pin |
| Connection type | M12 connector |
| Degree of protection | IP67 |
| Housing material | PBT |
| Adjustment | External teach-in |
| Protections | reverse polarity, short circuit, overvoltage |
| Operating temperature | −20 … +70 °C |
| Min. temperature, °C | -20 |
| Max. temperature, °C | 70 |
| Dimensions | M18 × 60,4 mm |
| Weight, g | 15 |
| Repeatability | 2 % |
| Hysteresis | 2 % |
| Included | Nuts |
| Tariff code (CN/TARIC) | 8536 50 19 (8536501900) |
| Import duty from third countries | 0 % |
