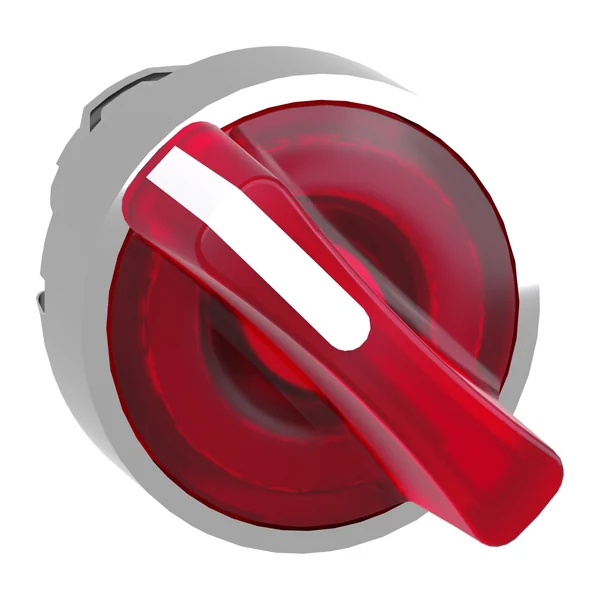

SA22-BK1243 — Selector switch head Ø22, metal, handle, 2 positions, red, maintained, illuminated
Code: SA22-BK1243
€4.80 incl. VAT / pc€4.00 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Ø22 selector switch head, metal, with handle, 2 positions, red, latching, illuminated. The head is mounted in a 22 mm diameter hole and is supplied with a SA22 base and contact elements 1 NO (PBE10 / HBE101) or 1 NC (PBE01 / HBE102), and the illuminated version is also supplied with a SA-PBV-6 socket and SA-PBV LED with the required voltage (24 V or 220 V). Dimensions are shown in the drawing.
Technical data
| Group | Selector switch heads |
|---|---|
| Product type | Selector switch head |
| Actuator | handle |
| Number of positions | 2 |
| Colour | red |
| Illumination | illuminated |
| Action | maintained |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
