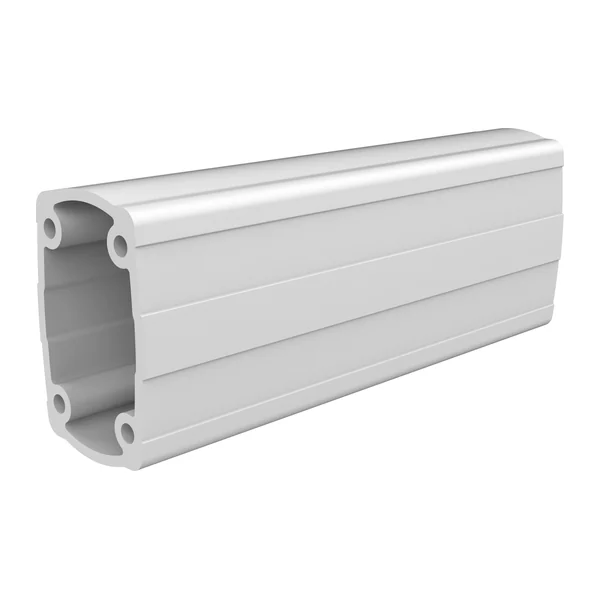

TK045.1250 — Arm profile 1250 mm — Teknokol TK045
Manufacturer: Teknokol · Code: TK045.1250
€78.66 incl. VAT / pc€65.55 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Arm profile 1250 mm — Teknokol TK045.
- Aluminum mounting profile for the TK045 system, cut to 1250 mm; cables run inside the profile.
- Dimensions 45 × 72 mm, weight 2.8 kg, color RAL 7035.
- Load capacity of the TK045 system: 1100 N at 500 mm (Figure 1) / 520 N at 250 mm (Figure 2); arm up to 2000 mm (Figure 1) / 1500 mm (Figure 2).
Technical data
| Product type | Profile |
|---|---|
| System | TK045 |
| Version | fixed |
| Material | aluminium |
| Colour | RAL 7035 |
| Weight, kg | 2,8 |
| Dimensions, mm | 45 × 72 × 1250 |
| Length, mm | 1250 |
| Degree of protection | IP65 |
| Static load capacity of the system | 1100 N up to 500 mm (diagram 1) / 520 N up to 250 mm (diagram 2); arm up to 2000 mm (diagram 1) / 1500 mm (diagram 2) |
| Code in the 2021–2022 catalogue | TK045.125 |
| Tariff code (CN/TARIC) | 7604 21 00 (7604210000) |
| Import duty from third countries | 7,5 % |
