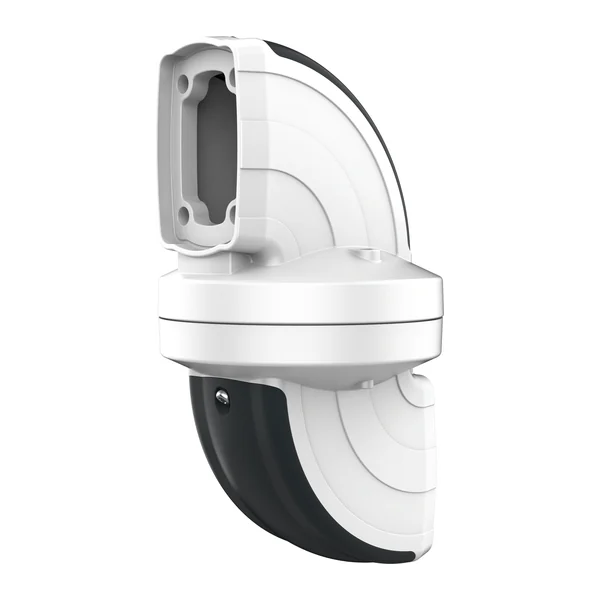

TK045.500 — Support arm system module TK045: horizontal rotating module, S-shaped, hinge type between two profiles, rotation angle 340° (± 170°) — Teknokol
Manufacturer: Teknokol · Code: TK045.500
€165.87 incl. VAT / pc€138.22 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Intermediate hinge, rotating — Teknokol TK045.
- Intermediate hinge between two horizontal profiles - the two arms move semi-independently relative to each other.
- Weight: 1.73 kg, Dimensions: 108 × 205 × 108 mm (W × H × D), Rotation: 310°.
- Designed for light configurations.
Technical data
| Product type | Hinge |
|---|---|
| System | TK045 |
| Version | rotating |
| Material | aluminium |
| Colour | RAL 7035 / RAL 7016 |
| Weight, kg | 1,73 |
| Dimensions, mm | 108 × 205 × 108 |
| Rotation | 310° |
| Degree of protection | IP65 |
| Static load capacity of the system | 1100 N up to 500 mm (diagram 1) / 520 N up to 250 mm (diagram 2); arm up to 2000 mm (diagram 1) / 1500 mm (diagram 2) |
| Tariff code (CN/TARIC) | 8302 49 00 (8302490099) |
| Import duty from third countries | 2,7 % |
