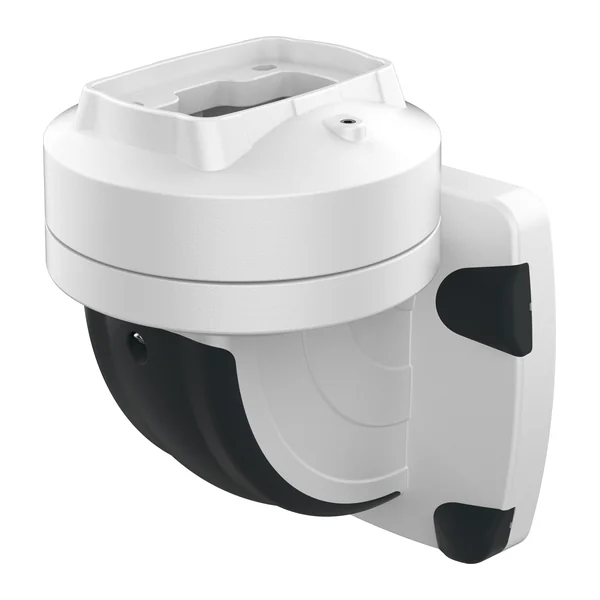

TK060.710 — Support arm system module TK060: rotating base S-shaped, wall mounting, vertical outlet, rotation angle 315° (± 150°) — Teknokol
Manufacturer: Teknokol · Code: TK060.710
€291.54 incl. VAT / pc€242.95 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Rotating wall mount, vertical outlet — Teknokol TK060.
- Wall bracket for mounting on a wall or machine; the arm extends vertically.
- Weight: 2.56 kg, Dimensions: 139 × 180 × 135 mm (W × H × D), Rotation: 310°.
- Designed for medium configurations
Technical data
| Product type | Hinge |
|---|---|
| System | TK060 |
| Version | rotating |
| Material | aluminium |
| Colour | RAL 7035 / RAL 7016 |
| Weight, kg | 2,56 |
| Dimensions, mm | 139 × 180 × 135 |
| Rotation | 310° |
| Degree of protection | IP65 |
| Static load capacity of the system | 1100 N (diagram 1) / 1000 N (diagram 2) up to 1000 mm; arm up to 3000 mm |
| Tariff code (CN/TARIC) | 8302 49 00 (8302490099) |
| Import duty from third countries | 2,7 % |
