ASDA-A3

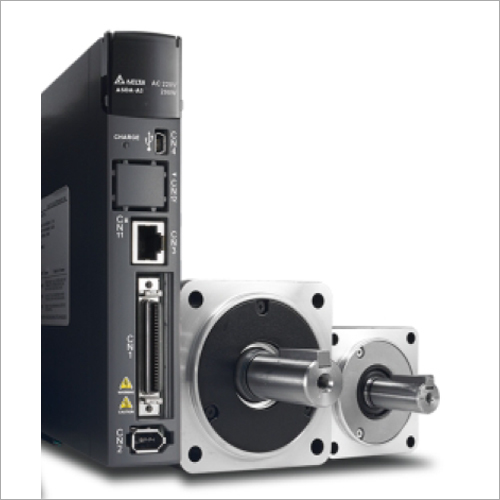

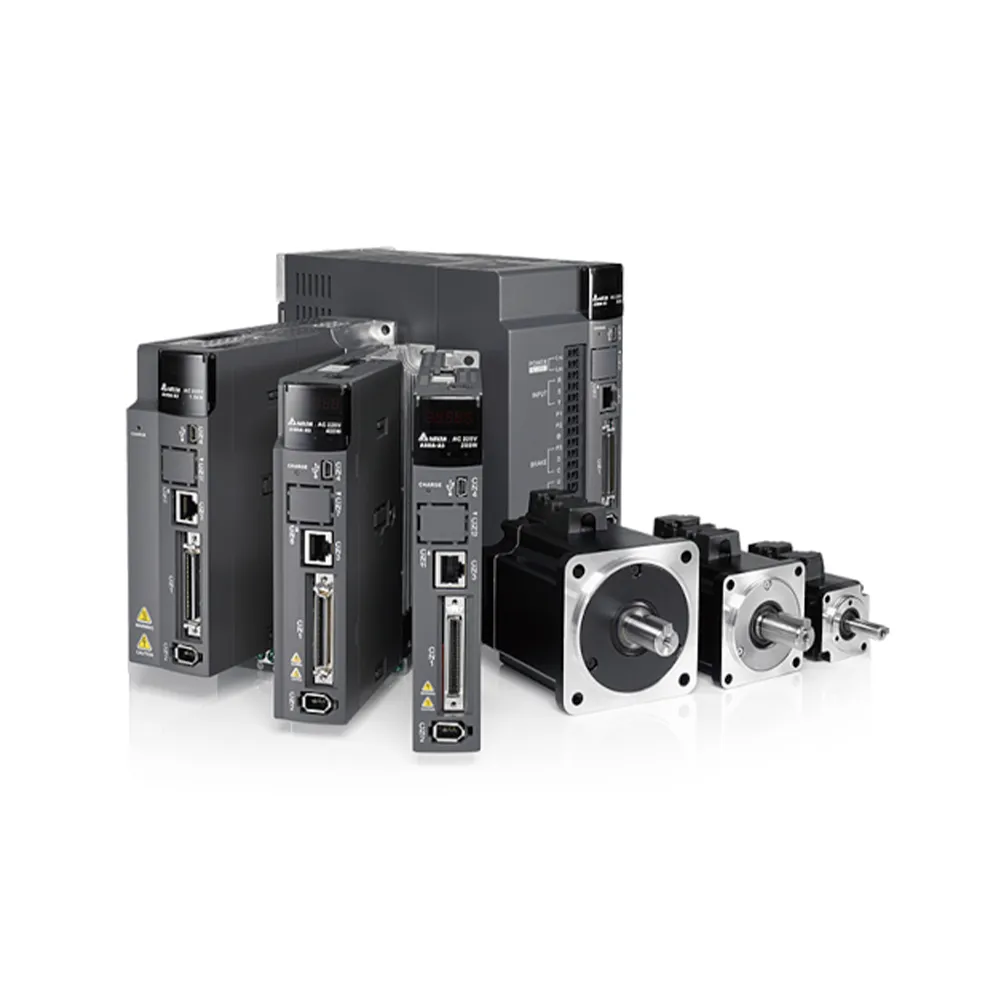

ASDA-A3 servo

Characteristics

• Power range: 0.1 kW ~ 1.5 kW for 1 x 230 VAC and 2 kW ~ 3 kW for 3 x 230 VAC
• Increased precision thanks to the use of motors with 24-bit encoders
• Working with motors with incremental and absolute encoders
• Can be combined with A3, A2, B3 and B2 series servo motors
• Adjustable bandwidth up to 3.1 kHz
• Available communication protocols: CANopen, EtherCAT, DMCNet
• Operation in the following modes: position, speed, torque, communication and PR
• Extensive PR mode with boolean, enumeration functions and internal variables
• Built-in electronic cam and gantry mode
• Automatic adjustment of the servo drive with a clear assistant
• Ability to work in a closed control loop
• Features: capture and compare

3.1 kHz Bandwidth

• Higher responsiveness and shorter settling time increases productivity

24- bit absolute encoder

• 16,777,216 pulses/rotations ensure precise positioning
• Stable performance at low speed improves machining quality
• Maintains motor position in the absence of power

Advanced Motion Control E-CAM & 99 advanced motions

• E-CAM & 99 complex motion commands and allowed segments
• Graphical user interface offers simple setup and programming
• Arithmetic operations / comparison commands are available
• Common motion functions such as heading, position and speed commands
• Overlay, blend and motion change commands are provided

Comprehensive auto-tuning features

• Built-in auto-setup function reduces user barriers and optimizes machine performance with less setup effort
• Provides step-by-step guidance wizard for easy setup and tuning of servo motors via panel keyboard or software
• Excellent vibration suppression
• Advanced filter
• Provides 5 sets of filters with up to 5 kHz adjustable bandwidth
• Filters can search for resonance in a shorter time and automatically set the damping level, avoiding machine damage

Function to suppress low-frequency vibrations

• Suppresses vibration for high flexibility machines, improving overall productivity
• Adopts a creative algorithm to eliminate machine judder without slowing down response and speed

System diagnostics function

• Measures machine stiffness and damping coefficient and checks machine batch assembly consistency
• Obtains the wear status of a machine by comparing data from different time periods

Multi-axis DC-bus sharing design

• Collects regenerative energy and stabilizes the DC-bus voltage to save energy
• Multiple servo drives with DC-bus sharing save resistor costs and installation space

Slim and compact servo drives and motors

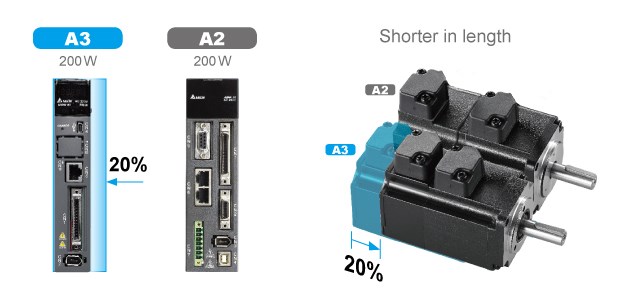

• Drives and motors are 20% smaller and shorter than the ASDA-A3 series, saving space

Intuitive software interface

• Tree view index list and collapsible menu help to easily access the features
• Graphical interface provides setup functions and parameters, reducing setup time and failures

Documents:

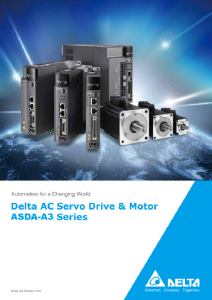

ASDA-A3 catalogue:

ASDA-A3 catalogue

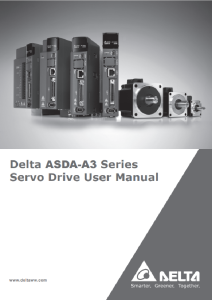

ASDA-A3 manual:
