Модулни честотни инвертори Delta MX300 на обща DC шина

MX300

MX300

Delta’s modular AC drive series for machines with many drives. One rectifier module feeds up to six inverter modules through a common DC bus — up to 15 axes in total. It saves cabinet width, returns the energy of braking axes to the bus and reduces the need for braking resistors.

Key parameters

  • Supply 1 × 230 V AC or 3 × 400 V AC
  • Rectifier modules 2.2 – 3.7 kW (230 V) and 7.5 – 18.5 kW (400 V)
  • Inverter modules 0.4 – 2.2 kW (230 V) and 0.4 – 7.5 kW (400 V), with 1, 2 or 3 axes
  • MX300-C: CANopen and Modbus RS-485; MX300-E: EtherCAT, EtherNet/IP, PROFINET
  • V/F and SVC; induction and permanent-magnet synchronous motors
  • Protection IP40
Request a quote

or: +359 32 395 989 · sales@mechatronics.bg

Price, availability and lead time on request — for companies and individuals.

Induction motor torque with V/f controlHow much torque the motor gives at 20, 50 or 87 Hz — single-phase versus three-phase drive, star or delta.Open the chartsEnergy savings with a variable frequency driveHow many kWh and € per year a drive saves on a pump or fan instead of a throttling valve or damper — with reactive energy and the accuracy of the estimate.Open the calculator
Categories: , Tags: ,

MX300

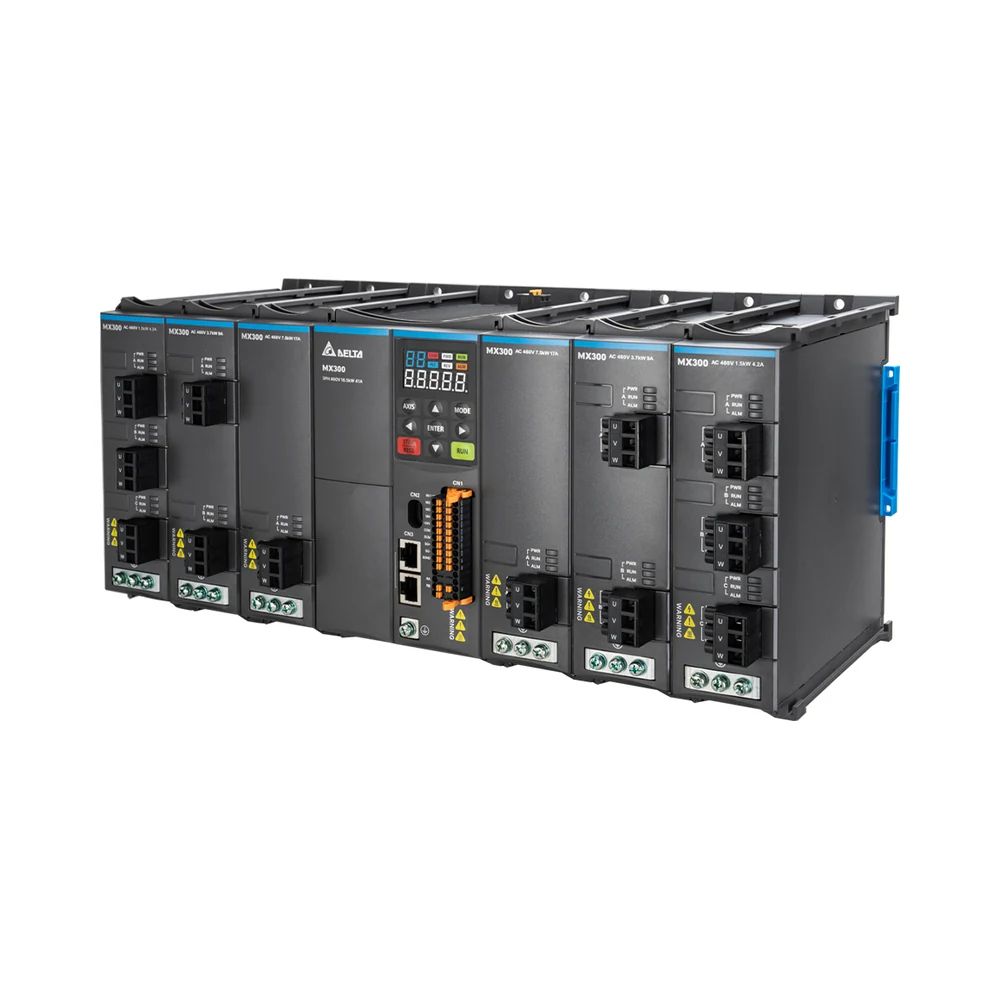

MX300 splits the drive into modules: a rectifier module at the input, inverter modules with one, two or three axes and a link module. The modules mount side by side on a common DC bus without separate power wiring.

Technical data

Parameter 1 × 230 V AC 3 × 400 V AC
Power — rectifier module 2.2 – 3.7 kW 7.5 – 18.5 kW
Power — inverter module 0.4 – 2.2 kW 0.4 – 7.5 kW
Control mode V/F (scalar), SVC (sensorless vector); SVC for permanent-magnet motors
Motor type induction (IM), permanent-magnet synchronous (SPM, IPM)
Built-in communication MX300-C: CANopen, Modbus RS-485 · MX300-E: EtherCAT, EtherNet/IP, PROFINET
Overload ND: 110 % In / 1 min · HD: 150 % In / 1 min
Output frequency 0 – 599 Hz
Starting torque 200 % at 3 Hz (V/F and SVC for IM)
Inputs / outputs 4 digital and 2 analog inputs; 4 digital and 1 relay output
Protection IP40

Rectifier modules · 3 × 400 V AC

Part number Power Output current Braking unit Size W × H × D
VFD22AMXR43A 7.5 kW 22 A — 98 × 160 × 160 mm
VFD22AMXB43A 7.5 kW 22 A built-in 98 × 160 × 160 mm
VFD33AMXR43A 11 kW 33 A — 98 × 160 × 160 mm
VFD33AMXB43A 11 kW 33 A built-in 98 × 160 × 160 mm
VFD41AMXR43A 18.5 kW 41 A — 98 × 160 × 160 mm
VFD41AMXB43A 18.5 kW 41 A built-in 98 × 160 × 160 mm

Inverter modules · 3 × 400 V AC

Part number Power per axis Output current Axes
VFD1A5MXS43AA 0.4 kW 1.5 A 1
VFD1A5MXD43AA 0.4 kW 1.5 A 2
VFD1A5MXT43AA 0.4 kW 1.5 A 3
VFD2A7MXS43AA 0.75 kW 2.7 A 1
VFD2A7MXD43AA 0.75 kW 2.7 A 2
VFD2A7MXT43AA 0.75 kW 2.7 A 3
VFD4A2MXS43AA 1.5 kW 4.2 A 1
VFD4A2MXD43AA 1.5 kW 4.2 A 2
VFD4A2MXT43AA 1.5 kW 4.2 A 3
VFD5A5MXS43AA 2.2 kW 5.5 A 1
VFD5A5MXD43AA 2.2 kW 5.5 A 2
VFD5A5MXT43AA 2.2 kW 5.5 A 3
VFD9A0MXS43AA 3.7 kW 9 A 1
VFD9A0MXD43AA 3.7 kW 9 A 2
VFD13AMXS43AA 5.5 kW 13 A 1
VFD17AMXS43AA 7.5 kW 17 A 1

All inverter modules are 49 × 160 × 160 mm. S — one axis, D — two, T — three.

Link modules

Part number Description Size W × H × D
MKM-DR2M option for 2 inverter modules 49 × 160 × 160 mm
MKM-DR3M option for 3 inverter modules 49 × 160 × 160 mm

Distinctive features

  • Common DC bus between the modules — energy from a braking axis feeds an accelerating one, the bus voltage is more stable and a braking resistor is often unnecessary
  • The modules mount side by side without separate power wiring
  • Connection to DIADesigner through the built-in Type-C port, no adapter needed
  • Braking resistor — optional, on terminals B1/B2 of the rectifier module (version B)
  • No built-in EMC filter — the MKM-EPRD plate is used

Applications

  • panel saws
  • wood, PVC, glass and metal processing
  • washing machines
  • conveyor belts
  • packaging machines
  • food and beverage

Source: Delta MX300 catalogue, 02.2024.

Documents:

MX300 catalogueDelta MX300 catalogue

More files (manuals, ESI/XML, CAD, firmware) are in the Delta download center: MX300. Not sure which model you need — send us an inquiry.
