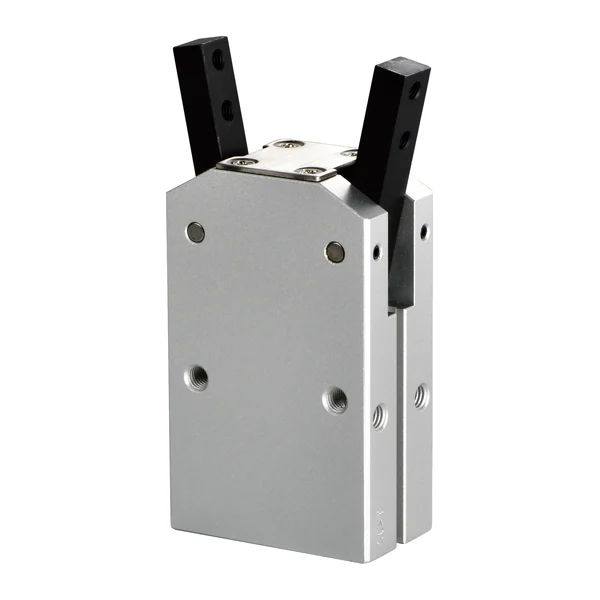

HDM20 — Angular gripper HDM Ø20, 180° opening, double-acting, M5
Manufacturer: Chelic · Code: HDM20
€165.26 incl. VAT / pc€137.72 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
HDM angular gripper, Ø20, 180° opening, double-acting, M5.
- Lightweight and compact, jaw opening up to 180°, various mounting directions.
- Theoretical gripping torque: closing 1.7×P, opening 2.3×P kgf·cm; max. gripping length 100 mm.
- Forces 33.8 N (opening) and 24.9 N (closing) at an arm length of 30 mm and 5 kgf/cm².
- Mounting brackets HM (internal) / HB (external) and CS-5G/5GN/5GP, CS-15T, CS-15B sensors.
Technical data
| Product type | Angular gripper 180° |
|---|---|
| Series | HDM |
| Actuation | Double-acting |
| Bore diameter, mm | 20 |
| Rotation angle | -1°…+180° |
| Gripping force | 33.8 N opening / 24.9 N closing (L = 30 mm, 5 kgf/cm²) |
| Port thread | M5×0,8 |
| Operating pressure | 1,5–7 kgf/cm² (150–700 kPa) |
| Operating temperature | 0–60 °C |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
