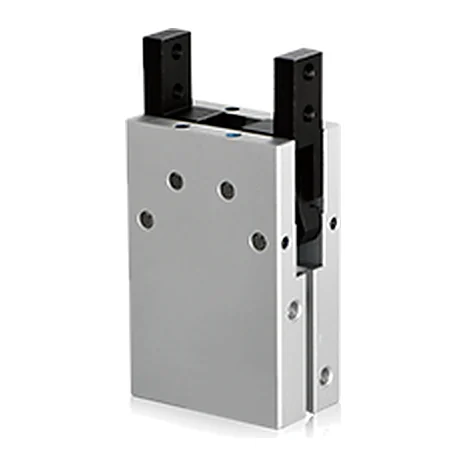

HDP32-ST2 — Parallel gripper HDP Ø32, stroke 16 mm, double-acting, with 2 sensors
Manufacturer: Chelic · Code: HDP32-ST2
€307.17 incl. VAT / pc€255.98 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Parallel gripper |
|---|---|
| Series | HDP |
| Actuation | Double-acting |
| Bore diameter, mm | 32 |
| Stroke, mm | 16 |
| Gripping force | 83.3 N opening / 98 N closing (L = 30 mm, 5 kgf/cm²) |
| Port thread | M5×0,8 |
| Operating pressure | 1,5–7 kgf/cm² (150–700 kPa) |
| Operating temperature | 0–60 °C |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
Documents
