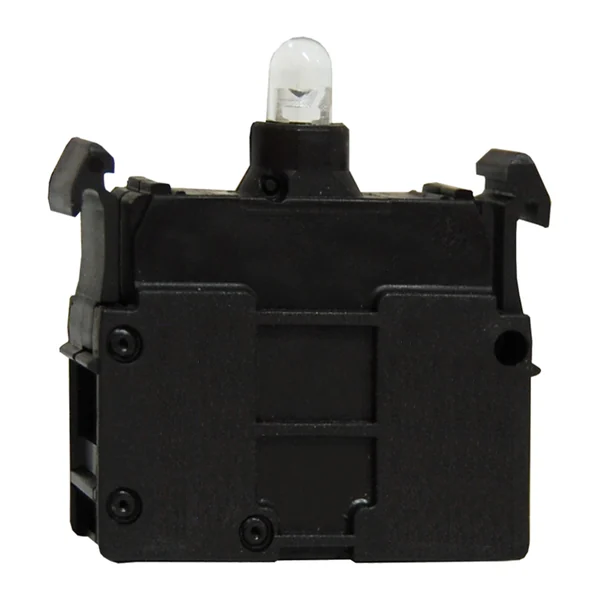

M22-SF-E30 BL(12~30 V) — LED element M22, blue, 12–30 V DC, 5–14 mA, 0.25 W at 24 V, screw terminals, for front mounting — in the middle slot of mounting base M22-A3
Code: M22-SF-E30 BL(12~30 V)
€5.11 incl. VAT / pc€4.26 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
M22 LED indicator, blue, 12–30 V DC, 5–14 mA, 0.25 W at 24 V, screw terminals, for front mounting – in the central opening of the M22-A3 mounting base. Illuminates the heads of buttons, switches, emergency buttons, and indicator lights in the color of the lens; protection rating IP20; operating temperature −25…+70 °C.
Technical data
| Colour | blue |
|---|---|
| Illumination | yes (LED element) |
| Version | 12–30 V DC, front mounting, screw terminals |
| Composition | LED element |
| Degree of protection | IP20 |
| Tariff code (CN/TARIC) | 8539 52 00 (8539520000) |
| Import duty from third countries | 3,7 % |
