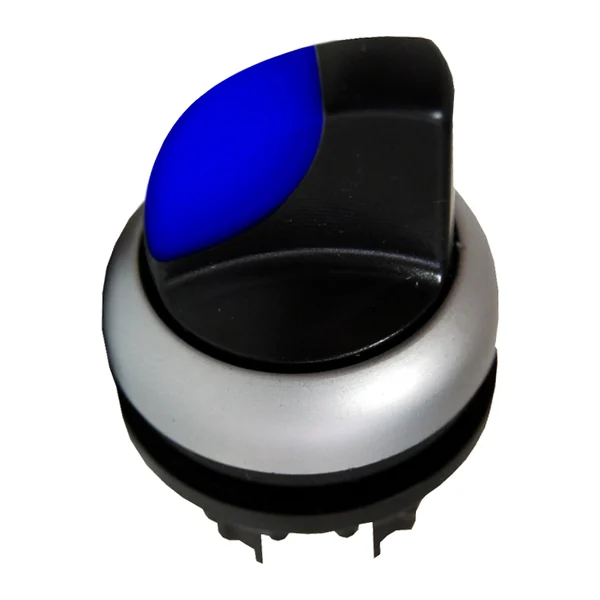

M22S-T30BLH — Head for M22 selector switch with handle (lever), 3 positions I–0–II, 60°, maintained (latching) in all three positions, blue handle
Code: M22S-T30BLH
€8.12 incl. VAT / pc€6.77 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
M22 switch head with lever, 3 positions I–0–II, 60°, with latching in all three positions, blue lever. Hole Ø22.3 mm; IP65 on the front; −25…+70 °C; 100,000 cycles. Only the head is supplied – with M22-A3 base and up to 3 M22-SF-NO/NC contacts.
Technical data
| Colour | blue |
|---|---|
| Illumination | for illumination (LED sold separately) |
| Actuator type | flat handle (lever) |
| Version | 3 positions I–0–II, 60°, maintained in all three positions |
| Composition | illuminated selector switch head |
| Degree of protection | IP65 |
| Tariff code (CN/TARIC) | 8538 90 99 (8538909999) |
| Import duty from third countries | 1,7 % |
