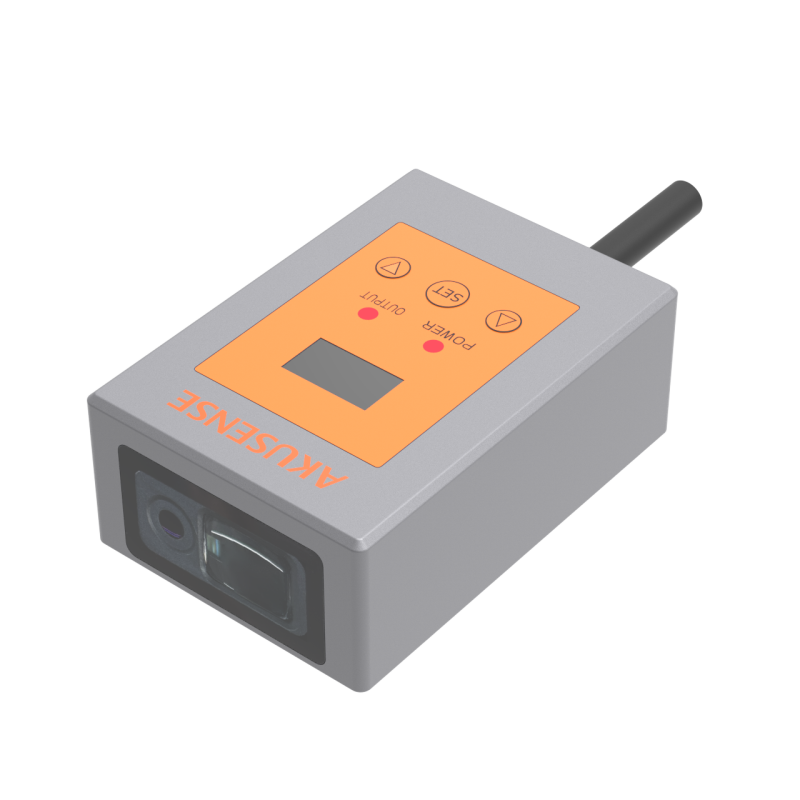

PX-FM08-485 — Laser rangefinder, TOF, 0.05 – 8 m, Digital (RS-232 / RS-485)
Manufacturer: Akusense · Code: PX-FM08-485
€644.46 incl. VAT / pc€537.05 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | Laser distance sensors |
|---|---|
| Series | PX |
| Version | TOF laser distance meters |
| Operating principle | Laser, TOF (time of flight) |
| Detection method | Diffuse |
| Housing shape | Rectangular |
| Measuring range, mm | 8000 |
| Range | 0,05 – 8 m |
| Output | Digital (RS-232 / RS-485) |
| Output function | Single, continuous or fast measurement |
| Power supply | 24 V DC ±10 % |
| Load, mA | 150 |
| Response time | single 1 s; continuous 200 ms; fast 30–100 ms |
| Connection | Cable 2 m, 8 cores |
| Connection type | Cable |
| Degree of protection | IP65 |
| Housing material | Aluminium alloy |
| Light source | Red laser 655 nm, 1 mW, class 2 |
| Operating temperature | −10 … +40 °C |
| Min. temperature, °C | -10 |
| Max. temperature, °C | 40 |
| Dimensions | 61,2 × 42 × 23,5 mm |
| Weight, g | 200 |
| Repeatability | <±2 mm |
| Measuring range | 0,05 – 8 m |
| Interface | RS-485 |
| Tariff code (CN/TARIC) | 9031 49 90 (9031499000) |
| Import duty from third countries | 0 % |
