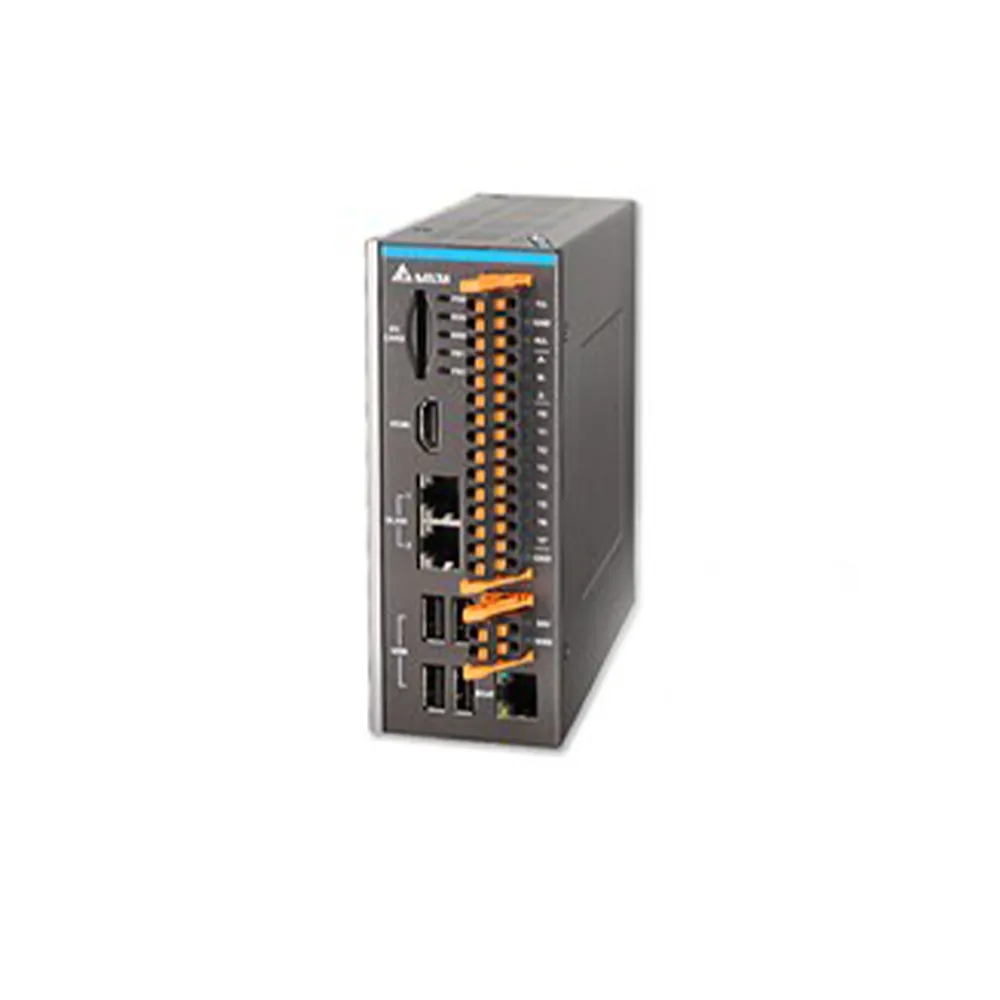

AX-8
AX-8
AX-8 is Delta’s high-end motion controller series — for many axes, high precision and fast cycles. Fanless Intel x86 processor, CODESYS SoftMotion and EtherCAT up to 128 synchronous axes; the C-licence versions add the CNC and robotics packages.
Key parameters
- Up to 128 synchronous servo axes over EtherCAT
- EtherCAT, PROFINET (master / slave), OPC UA server, EtherNet/IP, Modbus TCP/IP, CANopen
- PLCopen Part 1 and 2, multi-axis interpolation, CNC and robotics (Advanced versions)
- Local inputs and outputs, encoder input
- Programming in DIADesigner-AX per IEC 61131-3 — FBD, LD, ST, SFC
- Supply 24 V DC, 72 – 90 W; operation 0 … 50 °C
or: +359 32 395 989 · sales@mechatronics.bg
Price, availability and lead time on request — for companies and individuals.
AX-8
Delta works with the CODESYS® Group and offers a motion control solution that combines PLC, visualization and motion controller in one platform. AX-8 drives servo drives, AC drives and remote modules over EtherCAT and connects to MES and ERP via OPC UA.
Features

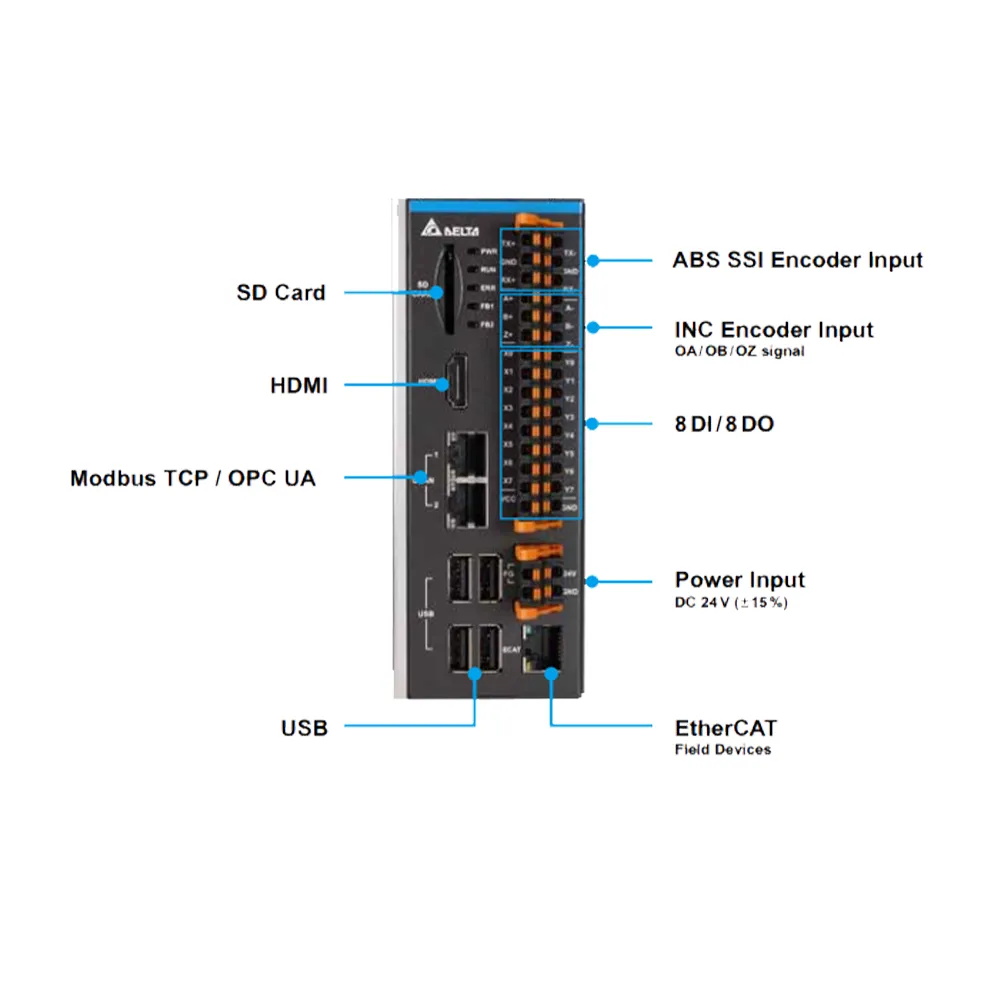

- High-performance Intel x86 processor
- Protocols: EtherCAT, PROFINET (master / slave), OPC UA (server), EtherNet/IP, Modbus TCP/IP, CANopen
- Built-in low-voltage detection and data retention on power loss
- Local inputs and outputs, encoder input
- Up to 128 axes of synchronous servo control
- DIADesigner-AX complies with IEC 61131-3 — FBD, LD, ST and SFC; certified PLCopen blocks, graphical electronic cam editor, simulation
- Linux with Delta HMI visualization on the versions with display (AX-8D…)
Technical data
| Parameter | AX-8H1E30CD2T | AX-8□□EP1ME1TP | AX-8D□□ECP1□E1TP |
|---|---|---|---|
| CPU | Intel Core i3 Tiger Lake UP3, 2 × 3.00 GHz | Intel Celeron | |
| Memory | LPDDR4X 4 GB | DDR4 4 GB | |
| Retain memory | 4 MB | 15 MB | |
| Display output | HDMI 2.0 × 1 | HDMI 1.4 × 1 | |
| Axes | 128 | 64 or 16 | 128 (H1) or 32 |
| Digital outputs | NPN | PNP / NPN (switchable) | |
| Motion functions | PLCopen Part 1, 2; interpolation; CNC & robotics | PLCopen Part 1, 2; interpolation | PLCopen Part 1, 2; interpolation; CNC & robotics |
| Operating system | Linux | ||
| Visualization | — | Delta HMI | |
| Ethernet | 2 × 2.5 Gbps | 1 Gbps | |
| EtherCAT | × 2 | × 1 | × 2 |
| USB | 4 × USB 3.0 | USB 3.0 × 1, Type-C × 1 | USB 3.0 × 1, USB 2.0 × 2, Type-C × 1 |
| Serial port | isolated RS-485 × 1 | isolated RS-485 × 2 | |
| Memory card | SD × 1 | — | Micro SD × 1 |
| Storage | M.2 SATA 32 GB | M.2, built-in SSD 32 GB | |
| Program capacity | 512 MB | 1 GB | |
| Power supply | 24 V DC (−15 … +20 %) | ||
| Rated power | 72 W (24 V / 3 A) | 90 W (24 V / 3.75 A) | |
| RTC battery | — | CR2032 for BIOS | |
| Size W × H × D | 77.7 × 141.5 × 140.5 mm | 63 × 160 × 160 mm | 63 × 225 × 163 mm |
| Weight | 1000 g | 1800 g | 2800 g |
| Speed — LD / math instruction | 0.4 / 0.4 ns | 0.4 / 0.6 ns | |
| Environment | operation 0 … 50 °C; 5 – 95 % RH non-condensing | ||
| Shock, protection | 15 g / 11 ms; IP20; CE, UL | ||
Source: Delta AX Series catalogue, 08.2026, p. 13.
Ordering models
| Model | Type | Axes | Outputs |
|---|---|---|---|
| AX-816EP0MB1T / P · AX-816EP0ME1T / P | Basic | 16 | NPN / PNP |
| AX-816EP1ME1TP | Basic | 16 | NPN / PNP switchable |
| AX-816EP0CE1T / P | Advanced | 16 | NPN / PNP |
| AX-832EP0MB1T / P · AX-832EP0ME1T / P | Basic | 32 | NPN / PNP |
| AX-832EP0CE1T / P | Advanced | 32 | NPN / PNP |
| AX-8D32ECP1ME1TP | Advanced, with display | 32 | NPN / PNP switchable |
| AX-864EP0MB1T / P · AX-864EP0ME1T / P | Basic | 64 | NPN / PNP |
| AX-864EP1ME1TP | Basic | 64 | NPN / PNP switchable |
| AX-864EP0CB1P · AX-864EP0CE1T / P | Advanced | 64 | NPN / PNP |
| AX-864EP0MC1T / P | Basic, CODESYS TV | 64 | NPN / PNP |
| AX-864EP0CC1T | Advanced, CODESYS TV | 64 | NPN |
| AX-8H1E30CD2T | Advanced | 128 | NPN |
| AX-8DH1ECP1CE1TP | Advanced, with display | 128 | NPN / PNP switchable |
Basic — SoftMotion (PLCopen); Advanced — with CNC and robotics. D after AX-8 means a built-in display. Source: Delta AX Series catalogue, 08.2026, p. 17.
Applications
- electronics assembly
- electronics
- lithium batteries
- photovoltaics
- woodworking
- stone cutting
- injection moulding
- packaging
- printing
Remote modules for AX-8 — R1-C and R1-EC.
Documents:
More files (manuals, ESI/XML, CAD, firmware) are in the Delta download center: AX-8. Not sure which model you need — send us an inquiry.
