Честотни инвертори Delta VP3000 за помпи и вентилатори

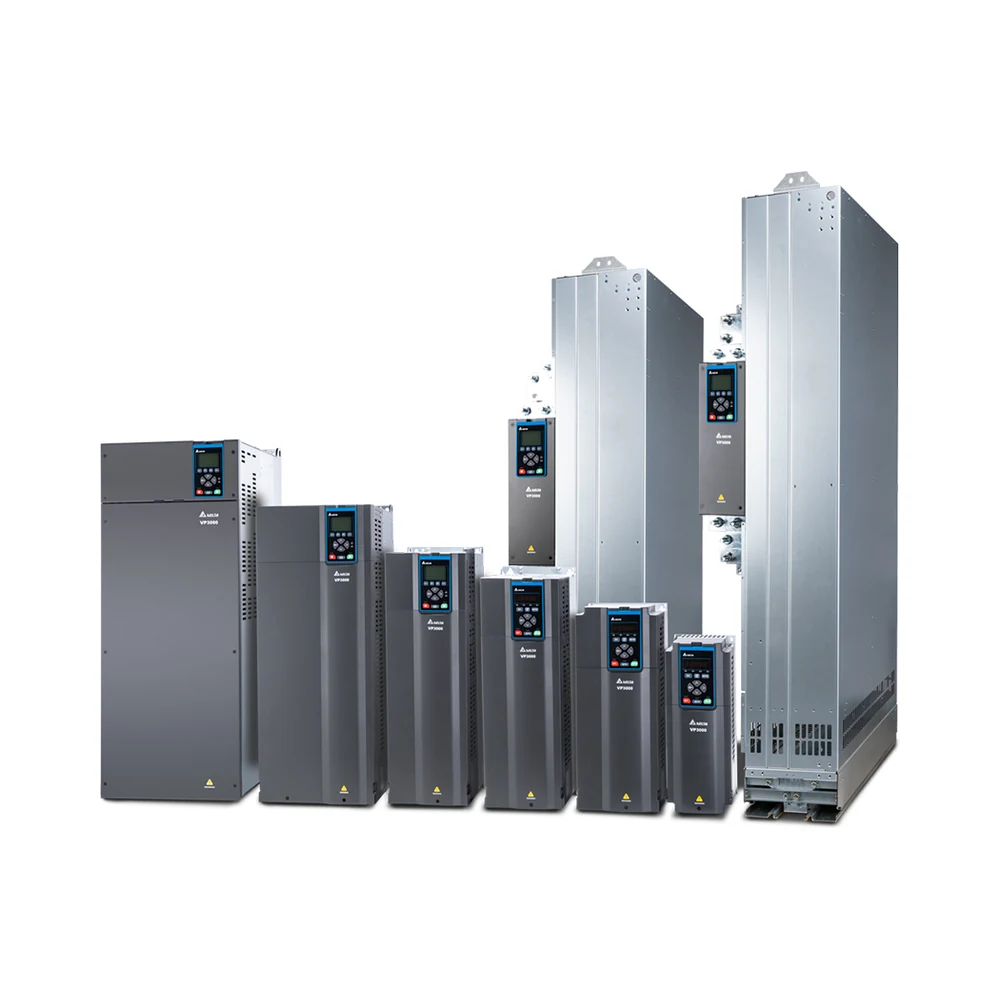

VP3000

VP3000

Delta’s new sector series for fluid applications — pumps, fans and air handling units. Built-in EMC filter and low harmonics, STO to SIL 3, coated boards and operation up to 50 °C without derating.

Key parameters

  • Supply 3 × 400 V AC, power 0.75 – 630 kW
  • V/F, SVC, sensorless control of PM and SynRM motors
  • Overload 110 % In for 1 min (every 5 min)
  • STO SIL 3 (IEC 61508 / IEC 62061), EN ISO 13849-1 cat. 3 / PL d
  • THDi below 35 % per EN 61000-3-12
  • Built-in PLC 20 000 steps
Request a quote

or: +359 32 395 989 · sales@mechatronics.bg

Price, availability and lead time on request — for companies and individuals.

Induction motor torque with V/f controlHow much torque the motor gives at 20, 50 or 87 Hz — single-phase versus three-phase drive, star or delta.Open the chartsEnergy savings with a variable frequency driveHow many kWh and € per year a drive saves on a pump or fan instead of a throttling valve or damper — with reactive energy and the accuracy of the estimate.Open the calculator
Categories: , Tags: ,

VP3000

VP3000 is the variable-torque drive: pump stations, fans, compressors and air handling units where the cabinet stands in a harsh environment. The pump functions are complete and built in — no separate controller needed.

Technical data

Parameter Value
Supply voltage 3 × 400 V AC
Power range 0.75 – 630 kW
Control mode V/F, SVC (sensorless vector), PM sensorless, SynRM sensorless
Overload 110 % In for 1 min (every 5 min); maximum current for 2 s at start
Motor type induction (IM), permanent magnet (SPM, IPM), synchronous reluctance (SynRM)
Output frequency 0 – 599 Hz
Safety STO SIL 3 (IEC 61508 / IEC 62061), EN ISO 13849-1 cat. 3 / PL d
Harmonics THDi < 35 % — per EN 61000-3-12
Built-in PLC 20 000 steps, WPLSoft / ISPSoft

Models · 3 × 400 V AC

Part number Power Output current Frame Size W × H × D, mm
VFD3A0VP43BSTCA 0.75 kW 3.0 A A 110 × 300 × 147
VFD4A2VP43BSTCA 1.5 kW 4.2 A A 110 × 300 × 147
VFD5A6VP43BSTCA 2.2 kW 5.6 A A 110 × 300 × 147
VFD7A2VP43BSTCA 3 kW 7.2 A A 110 × 300 × 147
VFD011VP43BSTCA 4 kW 11 A A 110 × 300 × 147
VFD013VP43BSTCA 5.5 kW 13 A B 110 × 300 × 167
VFD018VP43BSTCA 7.5 kW 18 A B 110 × 300 × 167
VFD025VP43BSTCA 11 kW 25 A C 142 × 380 × 213
VFD032VP43BSTCA 15 kW 32 A C 142 × 380 × 213
VFD038VP43BSTCA 18.5 kW 38 A C 142 × 380 × 213
VFD045VP43BFTCA 22 kW 45 A D 175 × 460 × 221
VFD062VP43BFTCA 30 kW 62 A D 175 × 460 × 221
VFD073VP43BFTCA 37 kW 73 A E 190 × 489 × 226
VFD090VP43BFTCA 45 kW 90 A E 190 × 489 × 226
VFD110VP43BFTCA 55 kW 110 A F 190 × 595 × 255
VFD150VP43BFTCA 75 kW 150 A G 199 × 660 × 310
VFD180VP43BFTCA 90 kW 180 A H 262 × 710 × 310
VFD220VP43BFTCA 110 kW 220 A H 262 × 710 × 310
VFD260VP43BFTCA 132 kW 260 A I 293 × 783 × 341
VFD310VP43BFTCA 160 kW 310 A I 293 × 783 × 341
VFD370VP43BFTCA 185 kW 370 A J 346 × 937 × 410
VFD395VP43BFTCA 200 kW 395 A J 346 × 937 × 410
VFD460VP43BFTCA 220 kW 460 A K 380 × 955 × 410
VFD485VP43BFTCA 250 kW 485 A K 380 × 955 × 410
VFD530VP43SHTCA 280 kW 530 A L 345 × 1281 × 529
VFD616VP43SHTCA 315 kW 616 A L 345 × 1281 × 529
VFD683VP43SHTCA 355 kW 683 A L 345 × 1281 × 529
VFD770VP43SHTCA 400 kW 770 A L 345 × 1281 × 529
VFD866VP43SHTCA 450 kW 866 A M 345 × 1436 × 529
VFD930VP43SHTCA 500 kW 930 A M 345 × 1436 × 529
VFD1K1VP43SHTCA 560 kW 1100 A M 345 × 1436 × 529
VFD1K2VP43SHTCA 630 kW 1212 A M 345 × 1436 × 529

Distinctive features

  • The built-in C2 or C3 EMC filter gives compliance with EN 61000-6-4, EN 61800-3 and EN 55011 without an external filter
  • Pump functions: cascade, run-time equalisation, motor pre-heating, sleep mode, pump curve, leak and dry-run detection, fire mode
  • Real-time clock, PID, differential pressure and predictive maintenance
  • No braking unit; from frame D up the choke is built in

Applications

  • water supply and treatment
  • HVAC
  • fans
  • pumps
  • compressors
  • building and factory automation

Source: Delta VP3000 catalogue, 11.2024.

Documents:

VP3000 catalogueDelta VP3000 catalogue

More files (manuals, ESI/XML, CAD, firmware) are in the Delta download center: VP3000. Not sure which model you need — send us an inquiry.
