MPD / MP300

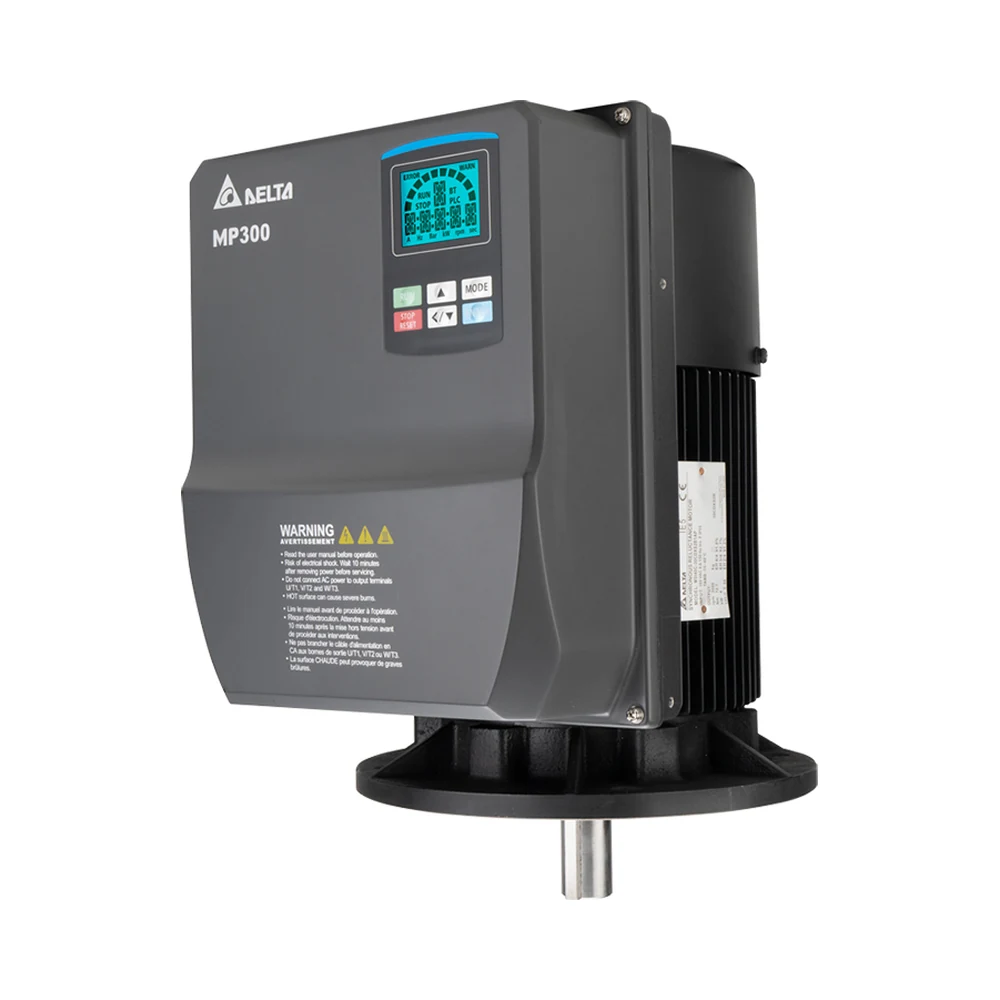

Running a pump with a contactor wastes energy, and without monitoring, dry running or a burst pipe damages the pump and floods the site. MPD combines an IE5 motor with frequency control, multi-pump logic with a real-time clock and pump protections in one unit mounted on the pump.
Features
- Delta MSI (PMa) synchronous reluctance motor of class IE5; the system is IES2 per IEC 61800-9-2
- IP55 — dust- and water-proof
- Built-in PLC (14k steps) and real-time clock for water-supply scheduling
- Multi-pump control of up to 8 pumps: alternation, constant pressure with staging and destaging of pumps on demand, redundancy — if an inverter fails the standby one takes over
- Sleep mode, impeller cleaning function, DC pre-heating
- Protections: dry running, burst pipe (leak), high and low pressure, cavitation; flow estimation from the pump curve
- EMC filter class C1 / C2 per EN 61800-3 — in the F versions
- Multi-colour LCD with three status colours — standby, running, alarm
- Optional Bluetooth card and Delta app for monitoring and commissioning
Technical data
| Parameter | MPD | MP300 |
|---|---|---|
| Supply | 3 × 380 – 480 V AC (−15 … +10 %), 50/60 Hz; operating range 323 – 528 V | |
| Power | 0.75 – 7.5 kW | 0.75 – 22 kW |
| Control | PMSVC | V/F, PMSVC |
| Output frequency | up to the motor maximum | 0 – 599 Hz |
| Overload | 120 % for 1 min; 150 % for 3 s | |
| Reference | 0 – 10 V / 4 (0) – 20 mA | |
| Carrier frequency | 2 – 15 kHz | |
| Protection | IP55 | IP55 (with adapter plate and motor) |
| Efficiency class | IES2 (system) | IE2 (CDM) |
| Motor protection | KTY84-130 / PTC-130 | |
| Operating temperature | −20 … 40 °C; up to 50 °C derated | |
| Certificates | CE, RoHS | CE, RoHS, UL, KC |
MPD models (motor + inverter)
| Power | MPD model | Inverter | Motor current | Rated torque |
|---|---|---|---|---|
| 0.75 kW | MPD75B30C43*2* | VFD1A6MP43J*NAA | 1.5 A | 2.3 N·m |
| 1.5 kW | MPD15C30C43*2* | VFD3A3MP43J*NAA | 3.1 A | 4.7 N·m |
| 2.2 kW | MPD22C30C43*2* | VFD4A7MP43J*NAA | 4.4 A | 7 N·m |
| 3.0 kW | MPD30C30C43*2* | VFD6A2MP43J*NAA | 5.8 A | 9.5 N·m |
| 4.0 kW | MPD40C30C43*2* | VFD8A5MP43J*NAA | 8 A | 12.7 N·m |
| 5.5 kW | MPD55C30C43*2* | VFD11AMP43J*NAA | 11 A | 17.5 N·m |
| 7.5 kW | MPD75C30C43*2* | VFD15AMP43J*NAA | 14.7 A | 23.8 N·m |
In the MPD model the first asterisk is the EMC filter (N — none, F — built-in), the second is the flange (B — B5/V1, D — B14/V18). In the inverter model the asterisk is N or F. Rated speed 3000 rpm.
MP300 models (inverter)
| Power | Model | Output current | Input current | Frame |
|---|---|---|---|---|
| 0.75 kW | VFD1A6MP43J*NAA | 1.6 A | 1.9 A | A |
| 1.5 kW | VFD3A3MP43J*NAA | 3.3 A | 3.8 A | A |
| 2.2 kW | VFD4A7MP43J*NAA | 4.7 A | 5.4 A | A |
| 3 kW | VFD6A2MP43J*NAA | 6.2 A | 7.2 A | A |
| 4.0 kW | VFD8A5MP43J*NAA | 8.5 A | 9.9 A | A |
| 5.5 kW | VFD11AMP43J*NAA | 11.7 A | 13.8 A | B |
| 7.5 kW | VFD15AMP43J*NAA | 15.6 A | 18.5 A | B |
| 11 kW | VFD24AMP43J*NAA | 24.4 A | 29.9 A | C |
| 15 kW | VFD31AMP43J*NAA | 31.8 A | 38.9 A | C |
| 18.5 kW | VFD39AMP43J*NAA | 39.2 A | 48.5 A | C |
| 22 kW | VFD45AMP43J*NAA | 45.6 A | 56.5 A | C |
Applications
- water supply for industrial, commercial and residential use
- booster pump systems
- circulating pumps
Source: Delta MPD / MP300 catalogue, 08.2025, pp. 3–13; deltaww.com.
Documents:
More files (manuals, ESI/XML, CAD, firmware) are in the Delta download center: MPD. Not sure which model you need — send us an inquiry.
